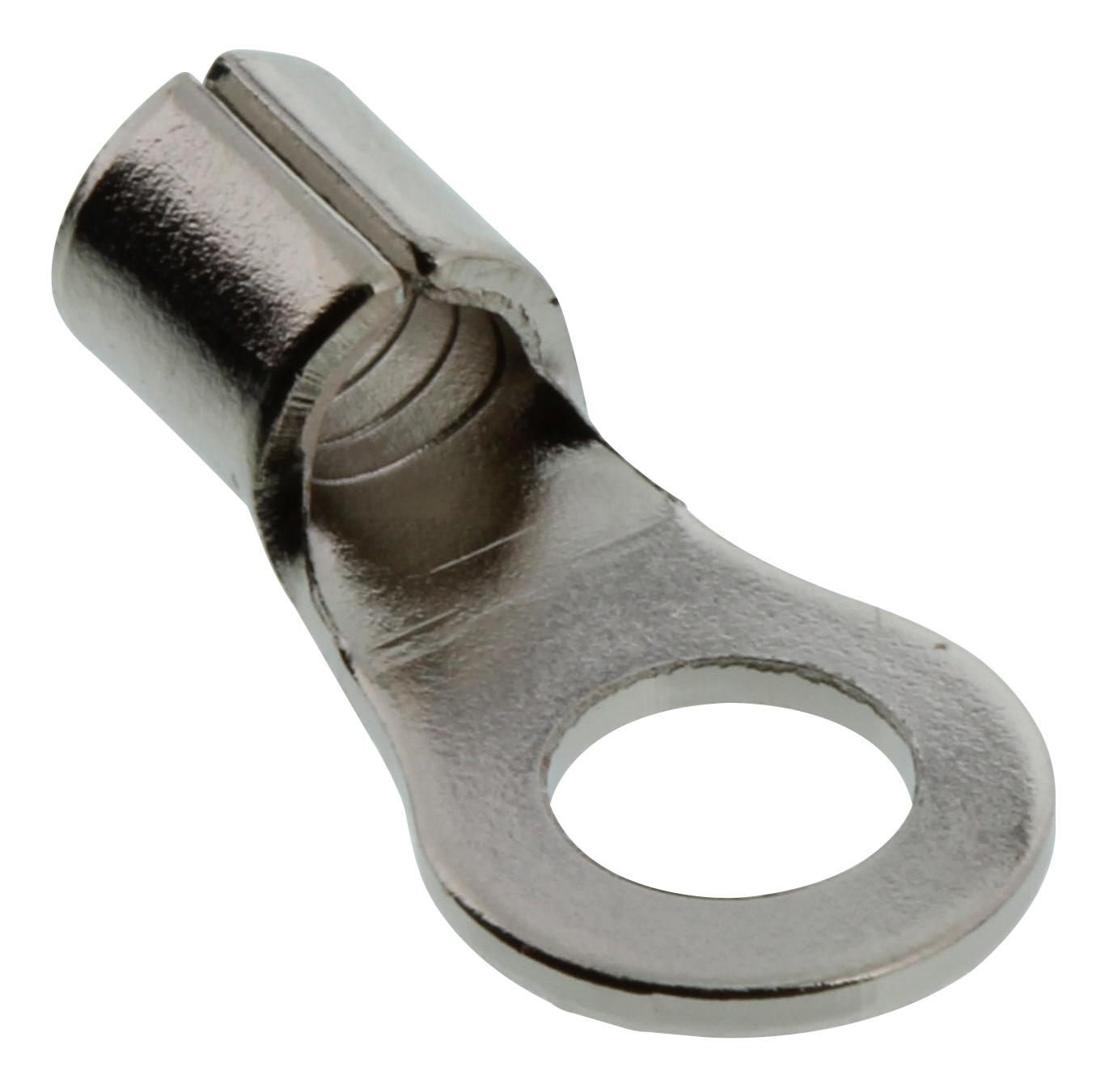

MOLEX 192030389 Krimptite Ring Tongue Terminal
The MOLEX 19203-0389 Krimptite ring tongue terminal is a high-temperature solution for secure wire connections. Designed for 10 to 12 AWG wire with a stud size of 10 (M5), this terminal offers reliable performance in demanding environments. Constructed with steel and featuring mating nickel plating, it ensures excellent conductivity and corrosion resistance. Its closed barrel design provides a secure connection, while its RoHS compliance aligns with environmental standards. This terminal is commonly used in automotive, industrial equipment, and consumer electronics applications where robust and reliable wire terminations are essential.
MOLEX 192030389 Krimptite Ring Tongue Terminal Specifications:
- Product Family: Ring and Spade Terminals
- Series: 19203
- Crimp Quality: Equipment Yes
- Mil-Spec: N/A
- Type: Ring
- UPC: 822348424788
- Barrel Type: Closed
- Insulation: None
- Material - Metal: Steel
- Material - Plating: Mating Nickel
- Net Weight: 1.180/g
- Packaging Type: Carton
- Stud Size: 10 (M5)
- Temperature Range - Operating: 483°C
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 5.70mm max.
- Wire Size AWG: 10, 12
- Wire Size mm²: 4.00-6.00
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per ED/108/2014
- Halogen-Free: Low-Halogen
- RoHS Phthalates: Not Reviewed
- Application Tooling - PremiumGrade Hand Crimp Tool: 640030100
- Application Tooling - Crimp Head for the AT-200 Pneumatic Hand Tool: 640070100
