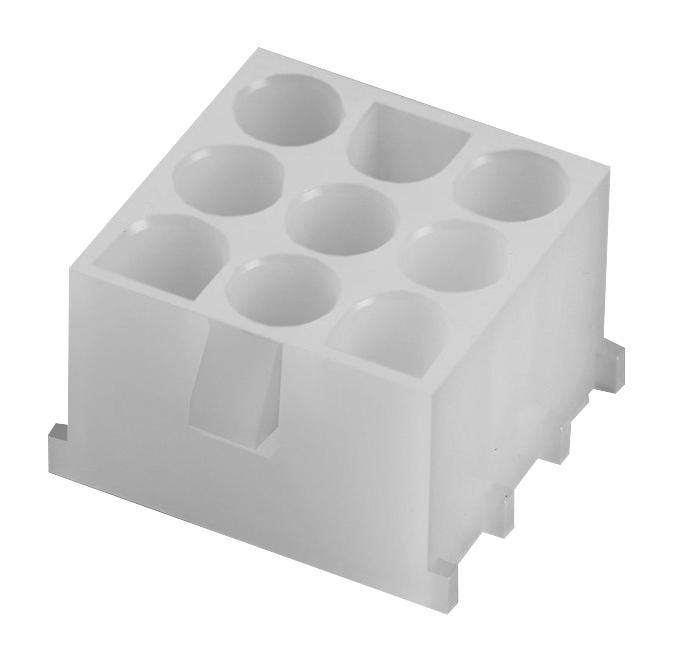

MOLEX 10844042 MLX Power Connector
The MOLEX 10-84-4042 is a robust MLX Power Connector suitable for demanding wire-to-board applications. It boasts a 6.35mm pitch and a 2.13mm contact diameter, offering a secure and reliable connection. Constructed with PA Polyamide (Nylon) 6/6 and tin plating, this connector is designed for durability and optimal performance in environments requiring high vibration resistance. It is ideal for power transmission applications and is compatible with a range of industrial equipment.
MOLEX 10844042 MLX Power Connector Specifications:
- overview: MLX Power Connectors
- description: 6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 4 Circuits
- application: Power, Wire-to-Board
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Natural
- durability_mating_cycles: 50
- flammability: 94V-2
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 2.564
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length_mm: 4.30
- pcb_retention: None
- pcb_thickness_recommended_mm: 0.90
- packaging_type: Carton
- pitch_mating_interface_mm: 6.35
- polarized_to_pcb: Yes
- surface_mount_compatible: No
- temperature_range_operating_c: -55° to +105°C
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 13.5, 20.0
- voltage_maximum_v: 600
- lead_free_process_capability: WAVE
- process_temperature_max_c: 260
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 42021, 42023
