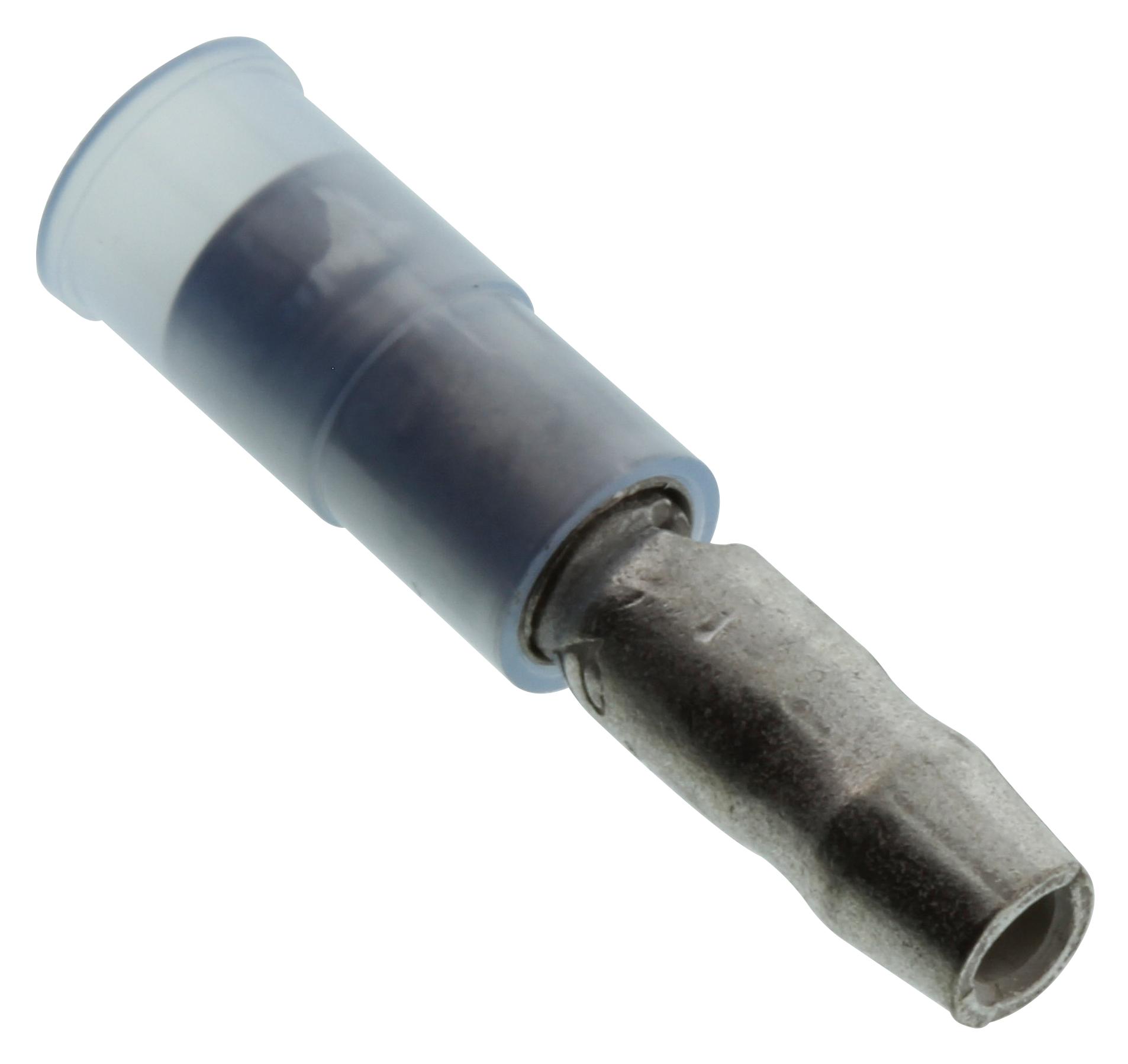

MOLEX 190350005 Avikrimp Snap Plug
The MOLEX 19035-0005 Avikrimp Snap Plug is a robust connector solution for various industrial applications. Designed for 14-16 AWG wire, this snap plug offers a secure and reliable connection with its closed barrel design and molded nylon insulation. It is RoHS compliant and currently active, making it suitable for new designs and replacements. The plug's copper construction and tin plating provide excellent conductivity and corrosion resistance, ensuring long-term performance in demanding environments. It is commonly used in automotive, appliance, and industrial equipment where quick and easy disconnection is required.
MOLEX 190350005 Avikrimp Snap Plug Specifications:
- status: Active
- overview: Snap Plugs and Receptacles
- description: Avikrimp Snap Plug, for 14-16 AWG Wire, Box, 24.08mm Length
- product_family: Quick Disconnects
- series: 19035
- comments: Molded Nylon Insulation, Molded Nylon Insulation
- crimp_quality_equipment: Yes
- insulated: Partial
- barrel_type: Closed
- color_resin: Blue
- flammability: 94V-2
- gender: Male
- glow_wire_capable: No
- insulation: Nylon (PA)
- lock_to_mating_part: None
- material_metal: Copper
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 1.814
- orientation: Straight
- packaging_type: Bag
- wire_insulation_diameter_max_mm: 4.32
- wire_size_awg: 14, 16
- wire_size_mm_sq: 1.30-2.00
- voltage_maximum: N/A
- lead_free_process_capability: N/A
- engineering_number: B-579
- product_specification_drawing_numbers: PS-19902-011-001, PS-19902-013-001
- sales_drawing_number: SD-19035-001
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- upc: 800753047877
