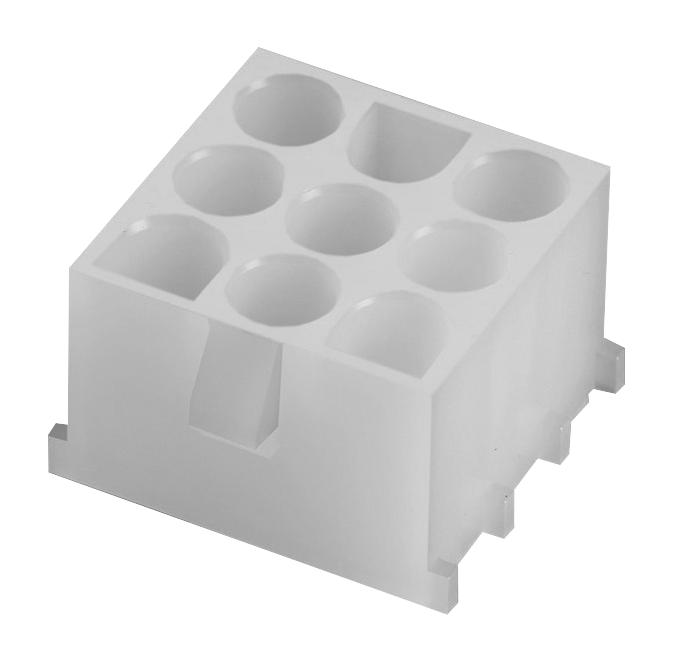

MOLEX 10844152 MLX Power Connector
The MOLEX 10-84-4152 is a robust power connector designed for wire-to-board applications, particularly suited for high-vibration environments. It features a 6.35mm pitch and a 2.13mm contact diameter, offering reliable power transmission. Constructed with PA Polyamide (Nylon) 6/6 and finished with tin plating, this connector ensures durability and corrosion resistance. Its vertical orientation and polarized design simplify integration into PCB assemblies. The connector is rated for a maximum current of 13.5A to 20.0A and a maximum voltage of 600V, making it suitable for a wide range of power applications.
MOLEX 10844152 MLX Power Connector Specifications:
- overview: MLX Power Connectors
- description: 6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 15 Circuits
- status: Active
- circuit_loaded: 15
- circuits_maximum: 15
- color_resin: Natural
- durability_mating_cycles: 50
- flammability: 94V-2
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 8.071
- number_of_rows: 3
- orientation: Vertical
- pc_tail_length_mm: 4.30
- pcb_retention: None
- pcb_thickness_recommended_mm: 0.90
- packaging_type: Carton
- pitch_mating_interface_mm: 6.35
- polarized_to_pcb: Yes
- surface_mount_compatible: No
- temperature_range_operating_c: -55° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 13.5A, 20.0A
- voltage_maximum_v: 600
- lead_free_process_capability: WAVE
- process_temperature_max_c: 260
- material_info_engineering_number: A-42002-15A2A1
