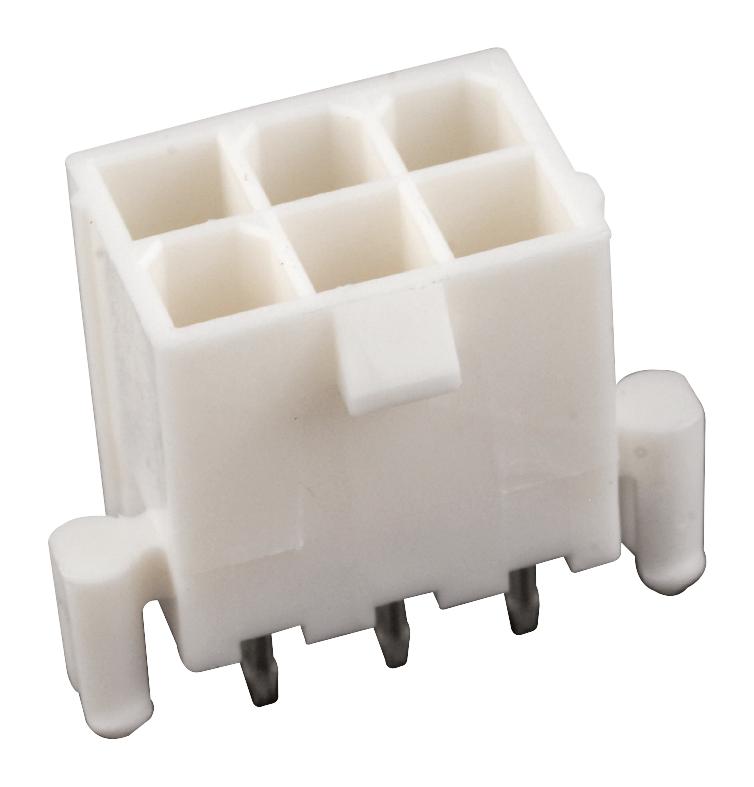

MOLEX 39299064 Power Connector
The Mini-Fit Jr. Power Connectors are versatile vertical headers with a 4.20mm pitch, dual row configuration, and 6 circuits. Made with natural-colored nylon and matte tin plating, they are designed for wire-to-board applications with a maximum current of 9A per contact and a voltage rating of 600V. These connectors feature through-hole termination, polarized design, and are RoHS and UL compliant. They are suitable for operating temperatures from -40°C to +105°C, providing reliable connections for power and signal transmission in various electronic devices.
MOLEX 39299064 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Rows: 2
- Circuits (Loaded): 6
- Maximum Circuits: 6
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Tin
- Material - Metal: Not specified
- Durability (mating cycles max): Not specified
- Flammability: Not specified
- Glow-Wire Capable: No
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating: 600V
- Current per Contact: 9.0A
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole
- PC Tail Length: 3.50mm
- PCB Locator: Yes
- Surface Mount Compatible: No
- Stackable: No
- Shrouded Fully: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Packaging: Tray
Buy the Molex Series Mini-Fit Jr Power Connectors: 39299064
Purchase Molex 39299064 Mini-Fit Jr. Power Connectors online today to ensure your electronic projects feature dependable power and signal connections. These connectors with a 4.20mm pitch and dual row configuration support up to 9A per circuit, suitable for various appliances and manufacturing equipment. With RoHS and UL compliance, they operate efficiently from -40°C to +105°C. Easy to install with through-hole termination, these connectors guarantee secure and durable connections for power and signal applications in diverse industries.
Buy Molex 39299064 Mini-Fit Jr. Power Connectors now and experience unmatched reliability and performance in power distribution.
Frequently Asked Questions
Where can I buy MOLEX 39299064?
You can click on the BUY or RFQ button to purchase 39299064 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299064?
You can download the 39299064 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299064?
MOLEX
