MOLEX 2160101033 Datasheet & Stock

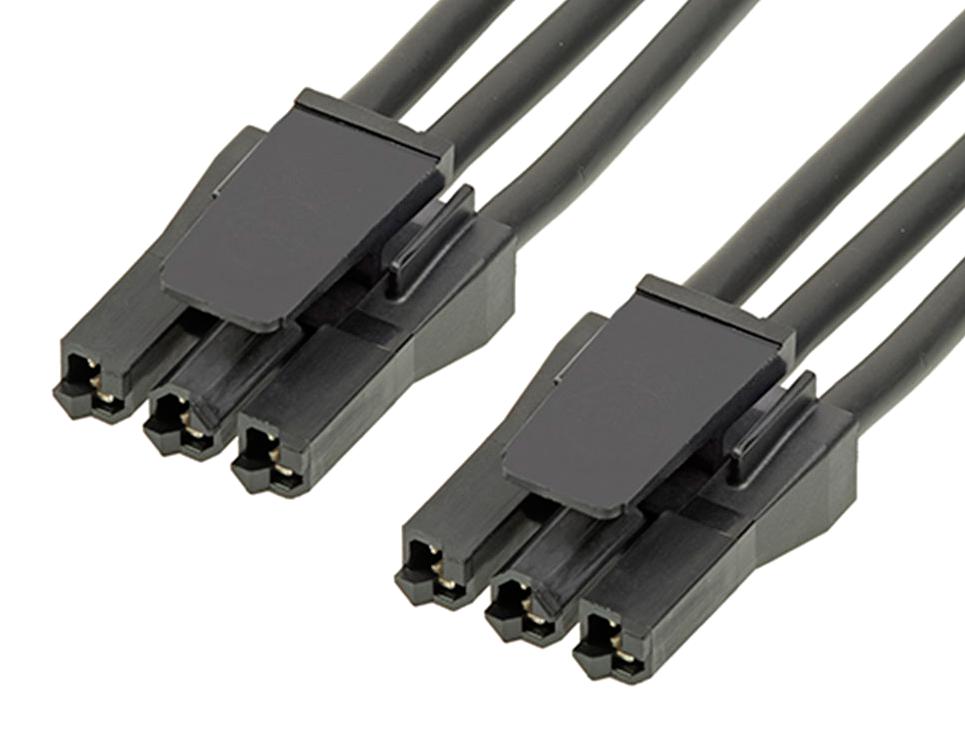

The 216010 series Super Sabre-to-Super Sabre off-the-shelf cable assemblies provide a reliable power connection solution rated at 34A per blade and up to 600V. Designed for high-current and high-voltage applications, these assemblies feature a low-profile design and are optimized for 10 to 12 AWG wires, offering a cost-effective alternative to gold-plated terminals. The assemblies include silver-plated, high-conductivity alloy terminals with four independent contact points, ensuring robust electrical connections. The flat-blade terminals are fully insulated on both mating sides for safety and protection against damage or shock. Features such as positive latch and terminal position assurance (TPA) enhance secure connections in high-vibration environments. Operating temperatures reach up to +105°C, complying with USCAR-2 level 3 standards. Suitable for automotive, consumer, medical, and telecommunications applications, these cable assemblies meet UL1977, UL60950, and safety certification requirements.

View 2160101033Datasheet [pdf]
