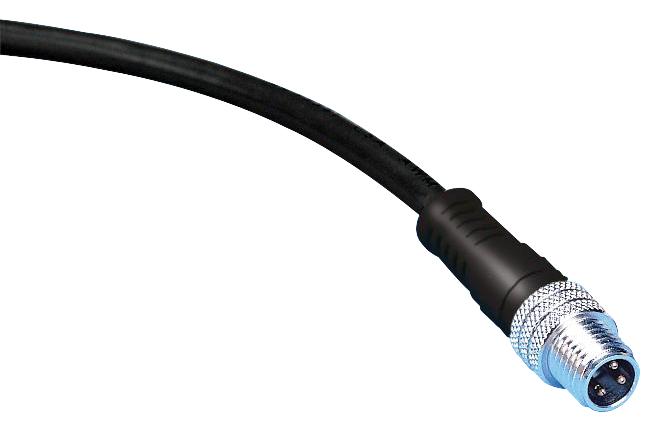

MOLEX 1200060559 M12 Connector
This Micro-Change M12 single-ended cordset features 4 poles with a male straight connector and a pigtail, incorporating 0.34mm PVC cable. It provides IP67 ingress protection, suitable for industrial environments requiring reliable connections. The cable length is 1.0m (3.28'), with a black PVC jacket, and the connector components are made from nickel-plated brass and copper alloy for durability. It operates within a temperature range of -30°C to +80°C, and supports UL 2464 electrical standards, handling up to 4A at 250V. Ideal for automation, robotics, and industrial control systems.
MOLEX 1200060559 M12 Connector Specifications:
- Cable Length: 1.0m (3.28')
- Cable Diameter: 5.40mm (.213")
- Cable Jacket Material: PVC
- Connector End A: Male, Straight
- Poles: 4
- IP Rating: IP67
- Material - Contact: Copper Alloy
- Material - Connector Body: Nickel-plated Brass
- Material - O-Ring: Fluoro-elastomer
- Material - Plating Mating: Gold over Nickel
- Temperature Range - Operating: -30°C to +80°C
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 250V AC/DC
- Wire/Cable Type: PUR
- UL Compliance: UL 2464
- Agency Certification: UL
Buy the Buy Molex Micro-Change M12 Part Number 1200060559 Online
Purchase this durable Molex Micro-Change M12 connector with a 1.0m PVC cable online today. Its IP67 rated design ensures excellent protection against dust and water, ideal for industrial environments. Made from high-quality nickel-plated brass and copper alloy materials, it guarantees longevity and reliable connections in automation, robotics, and control systems. Support UL standards with a maximum current of 4A at 250V. Get dependable performance and quick delivery by ordering online now.
Order your Molex Series120006 M12 cordset with a 1.0m PVC cable today and enhance the reliability of your industrial automation projects.
Frequently Asked Questions
Where can I buy MOLEX 1200060559?
You can click on the BUY or RFQ button to purchase 1200060559 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200060559?
You can download the 1200060559 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200060559?
MOLEX
