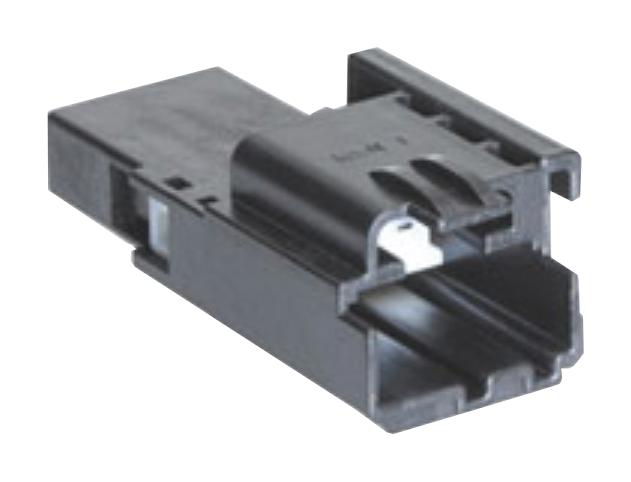

MOLEX 310681040 Power Connector
The H-DAC 64 is a 2.54mm pitch, 4-way male housing assembly designed for power and wire-to-wire applications. Made from modified polystyrene and polyester, it features polarization option A in black, with UL and RoHS compliance. This unsealed connector system supports maximum currents of 11.0A per contact and operates within -40°C to +100°C. Its standard single-row design ensures reliable, polarized connections suitable for diverse power and electronic projects, offering robust performance and easy mating with compatible receptacles in industrial and electronic assemblies.
MOLEX 310681040 Power Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Number of Rows: 1
- Circuits (maximum): 4
- Gender: Male
- Color: Black
- Material - Resin: Modified Polystyrene, Polyester
- Status: Active
- Operating Temperature Range: -40°C to +100°C
- Maximum Current per Contact: 11.0A
- Lock to Mating Part: Yes
- RoHS Compliant: Yes
- ELV Compliant: Yes
- Halogen-Free: Yes
- RoHS, China RoHS, REACH SVHC compliant
- Weight: 2.017 grams
Buy the Buy Molex H-DAC 64 Part Number 310681040 Online
Purchase the Molex H-DAC 64 power connector assembly online today and ensure reliable, polarized wire-to-wire connections for your electronic and industrial projects. This 2.54mm pitch, 4-way male housing is made from flame-retardant, halogen-free materials, supporting currents up to 11.0A per contact. Its operating temperature range from -40°C to +100°C makes it suitable for a wide array of applications. With UL and RoHS compliance, this connector guarantees safety and environmental standards, offering ease of installation and dependable performance for demanding electrical setups.
Order your Molex Series H-DAC 64 310681040 today and give your power and electronic projects the dependable, high-quality connection they deserve.
Frequently Asked Questions
Where can I buy MOLEX 310681040?
You can click on the BUY or RFQ button to purchase 310681040 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 310681040?
You can download the 310681040 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 310681040?
MOLEX
