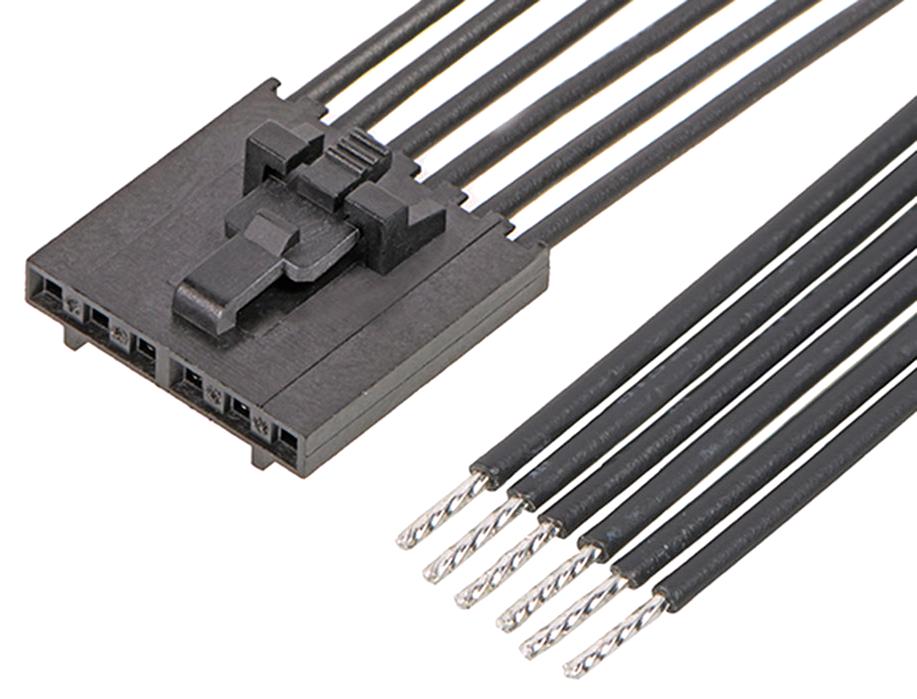

MOLEX 2162711060 Signal Cable Assembly
Off-the-shelf stackable linear positive lock cable assemblies are ideal for prototyping and mass production, supporting discrete wire, FFC, and IDT terminations. They feature two independent contact points for redundancy and enhanced electrical performance, along with a connector position assurance lock for secure connections in high-vibration environments. These assemblies include female-to-pigtail options, split-peg PCB headers, and low-profile housings with vertical and right-angle headers, suitable for consumer electronics, automotive, data, medical, and industrial applications. Rated for 600V, 3A, with durability up to 25 mating cycles, and compliant with UL and CSA standards.
MOLEX 2162711060 Signal Cable Assembly Specifications:
- Cable Length: 50.00mm
- Circuits: 6
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Wire Insulation Diameter: 2.54mm
- Wire Size AWG: 22
- Electrical Rating: 600V AC/DC, 3A maximum per contact
- Operating Temperature Range: -40°C to +105°C
- Rated Mating Cycles: Up to 25
- Compliance: UL 11028, CSA LR19980, RoHS, China RoHS
- Housing Type: Stackable, low-profile, with vertical and right-angle headers
- Application: Consumer electronics, industrial, automotive, data, medical, telecommunications
Buy the Molex 216271 Series – Reliable Signal Cable Assemblies for Industrial Applications
Purchase the Molex 216271 series signal cable assembly online and ensure secure, reliable connections for your projects. Designed for both prototyping and mass production, these assemblies support multiple terminations including discrete wire, FFC, and IDT. Featuring two contact points for redundancy, a positive lock for secure connections, and a durable tin-plated contact surface, they excel in industrial, automotive, and consumer applications. Rated for 600V and 3A, with a temperature range from -40°C to +105°C, they comply with UL and CSA standards, offering long-term reliability.
Buy Molex 216271 series now and experience reliable, high-performance cable assemblies suited for demanding industrial and electronics environments.
Frequently Asked Questions
Where can I buy MOLEX 2162711060?
You can click on the BUY or RFQ button to purchase 2162711060 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711060?
You can download the 2162711060 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711060?
MOLEX
