MOLEX 1200650528 Micro-Change M12 Connector

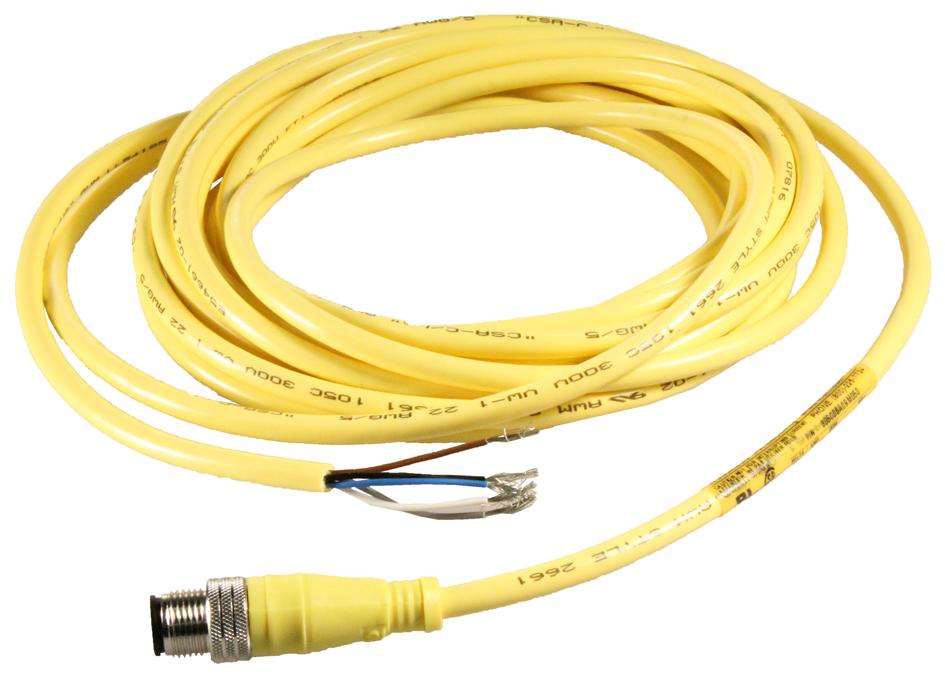

The 1200650528 is a 5-meter Micro-Change® single-ended cordset featuring a 5-position M12 straight male connector with a pigtail. It has a yellow PVC outer jacket, a polyurethane (PUR) connector body, and a nickel-plated brass coupling nut. The connector includes copper alloy contacts with a gold-plated over nickel finish, a fluoro-elastomer O-ring, and threaded coupling. It supports a wire gauge of 22 AWG, a maximum current of 4A per contact, and a voltage rating of 250VAC/DC. Suitable for sensing and instrumentation applications, it offers IP67 protection.
MOLEX 1200650528 Micro-Change M12 Connector Specifications:
- Connector Type: Micro-Change M12, 5-position, male straight with pigtail
- Cable Length: 5.0 meters
- Cable Diameter: 5.72mm (.225")
- Cable Material: PVC jacket
- Connector Body Material: Polyurethane (PUR)
- Coupling Nut: Nickel-plated brass
- Contacts: Copper alloy with gold over nickel plating
- O-ring: Fluoro-elastomer
- IP Rating: IP67
- Temperature Range: -20°C to +105°C
- Wire Gauge: 22 AWG
- Electrical Ratings: 4A maximum current, 250VAC/DC maximum voltage
- Connector End: Male, straight, threaded coupling
- Color - Cable Jacket: Yellow
- Agency Certifications: UL, CSA
- RoHS & ELV: Compliant, halogen-free option not specified
Buy the Molex 1200650528 – Reliable Micro-Change M12 Connector for Industrial Applications
Order the Molex Micro-Change M12 cordset with 5 meters of flexible PVC cable and robust nickel-plated brass coupling nut online today. Designed for industrial sensing and instrumentation, this 5-pin male straight connector offers IP67 waterproof protection, supporting 22 AWG wiring up to 4A and 250VAC/DC voltage. Its durable polyurethane body and gold-plated contacts ensure long-lasting performance in harsh environments. Easy to install, certified by UL and CSA, and RoHS compliant, it’s the ideal choice for reliable industrial connectivity.
Get Molex 1200650528 today—built for reliable sensing and instrumentation connections with IP67 protection.
Frequently Asked Questions
Where can I buy MOLEX 1200650528?
You can click on the BUY or RFQ button to purchase 1200650528 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200650528?
You can download the 1200650528 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200650528?
MOLEX
