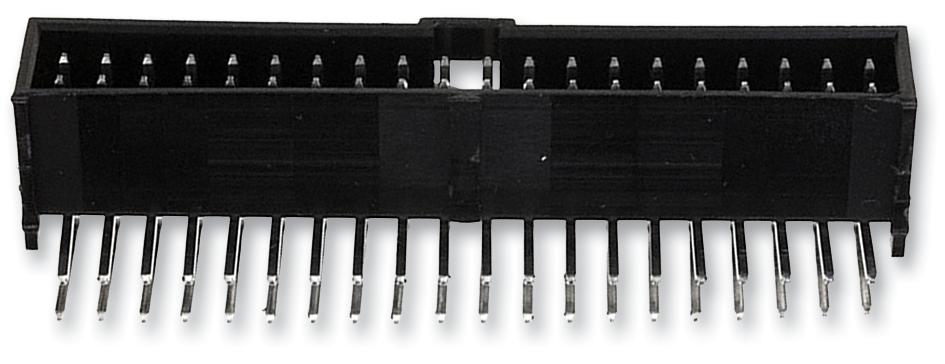

MOLEX 901303224 PCB Header Connector
The C-Grid III Header is a reliable dual-row, right-angle, shrouded connector designed for PCB signal connections. With 24 circuits, it features 0.38 micron gold selective plating for enhanced durability and corrosion resistance. Made of high-quality materials including brass and polyester, it offers 100 mating cycles and supports a temperature range of -55°C to +125°C. Widely used in industrial electronics, it ensures secure wire-to-board connections with locking features and is compatible with standard 2.54mm pitch interfaces for efficient assembly and maintenance.
MOLEX 901303224 PCB Header Connector Specifications:
- Circuits: 24 maximum
- Color: Black
- Material - Metal: Brass
- Material - Plating: Gold (mating), Tin (termination)
- Material - Resin: Polyester
- Durability: 100 mating cycles
- Flammability: 94V-0
- Guide to Mating Part: No
- Lock to Mating Part: Yes
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 2.54mm
- Voltage Rating: 350V AC/DC
- Current per Contact: 3.0A
- Temperature Range: -55°C to +125°C
- Connector Style: Through Hole
- Dimensions: Tail length 2.90mm
- Surface Mount Compatibility: No
- Shrouded Ends: Closed
- Packaging: Tray
- RoHS and REACH compliant
Buy the Molex 901303224 – Reliable PCB Interconnects for Industrial Applications
Secure your electronic projects with the Molex PCB Header Connector. Designed for industrial reliability, it features 24 circuits, gold plating for corrosion resistance, and a robust right-angle shrouded design. Ideal for wire-to-board connections, it supports high temperatures and multiple mating cycles for long-term use. Easy to mount and suitable for various PCB thicknesses, this connector ensures optimal performance in demanding environments. Purchase online today for dependable quality to enhance your manufacturing and electronic assembly processes.
Buy Molex 901303224 now and experience unmatched reliability and performance for your PCB signal connections with durable gold plating and secure locking features.
Frequently Asked Questions
Where can I buy MOLEX 901303224?
You can click on the BUY or RFQ button to purchase 901303224 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901303224?
You can download the 901303224 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901303224?
MOLEX
