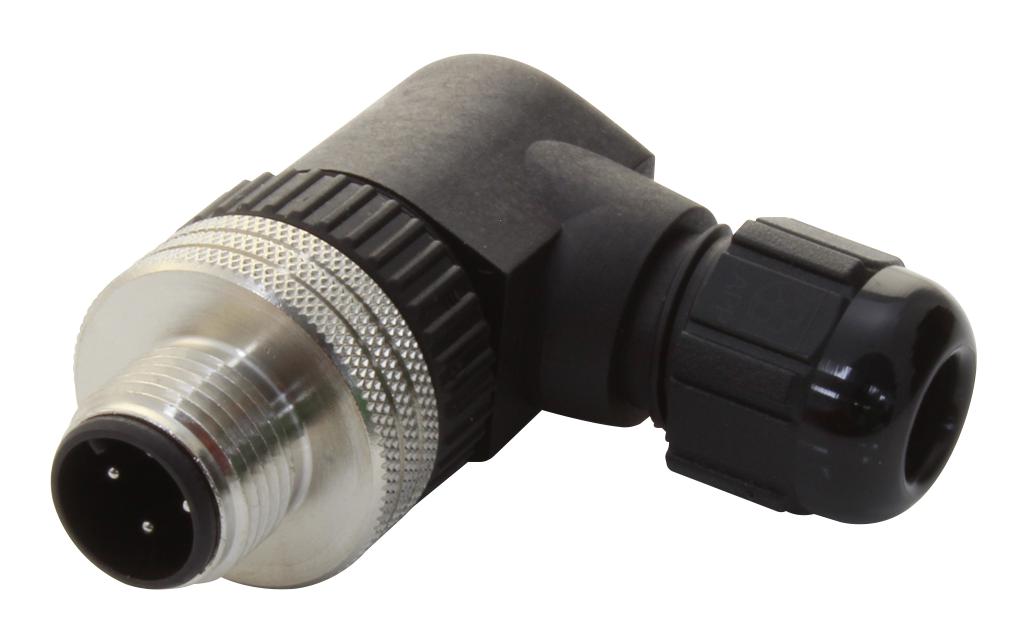

MOLEX 1200710040 Industrial M12 Connector
The micro-change M12 connector with a single keyway and PG7 cable fitting is designed for robust industrial applications. Featuring a 90° angle male connector with four poles, it supports cable diameters from 3.30 to 6.60mm. The connector offers an IP67 rating, ensuring excellent protection against dust and water ingress. Made from nickel-plated brass with a PA body, it is certified by CSA and compliant with RoHS standards. Operating temperatures range from -25°C to +90°C, providing reliable performance in harsh environments. Suitable for automation, sensors, and industrial control systems.
MOLEX 1200710040 Industrial M12 Connector Specifications:
- Connection Type: Field Attachable / Accessories
- Series: 120071 Series
- Physical Dimensions: Cable Diameter 3.30-6.60mm (0.130-0.260 inches), 90° angle male connector
- Material - Contact: Nickel-plated Brass
- Material - Connector Body: PA (Polyamide)
- Material - Coupling Nut: Brass
- IP Rating: IP67
- Number of Poles: 4
- Gender: Male
- Keyway: Single
- Coupling Type: External Thread
- Operating Temperature Range: -25°C to +90°C
- Electrical Current - Max Per Contact: 4.0A
- Voltage - Max: 250V AC / 300V DC
- Cable Compatibility: Supports cable diameter from 3.30mm to 6.60mm
- Certification: CSA, RoHS Compliant
- Weight: 25.401 grams
Buy the Buy Molex Micro-Change M12 Part Number 1200710040 Online
Purchase the Molex Micro-Change M12 connector with part number 1200710040 online for trusted industrial connectivity. Featuring a 90° male design, four poles, IP67 protection, and a cable diameter support of 3.30-6.60mm, it is ideal for automation, sensors, and control systems. Made from durable nickel-plated brass with a PA body, this connector operates reliably from -25°C to +90°C. Certified by CSA and RoHS compliant, offering excellent environmental resistance and long-term performance for demanding industrial applications.
Order your Molex Series120071 M12 connector with 4 poles today and enhance your industrial sensor and automation projects with reliable, IP67-rated connectivity.
