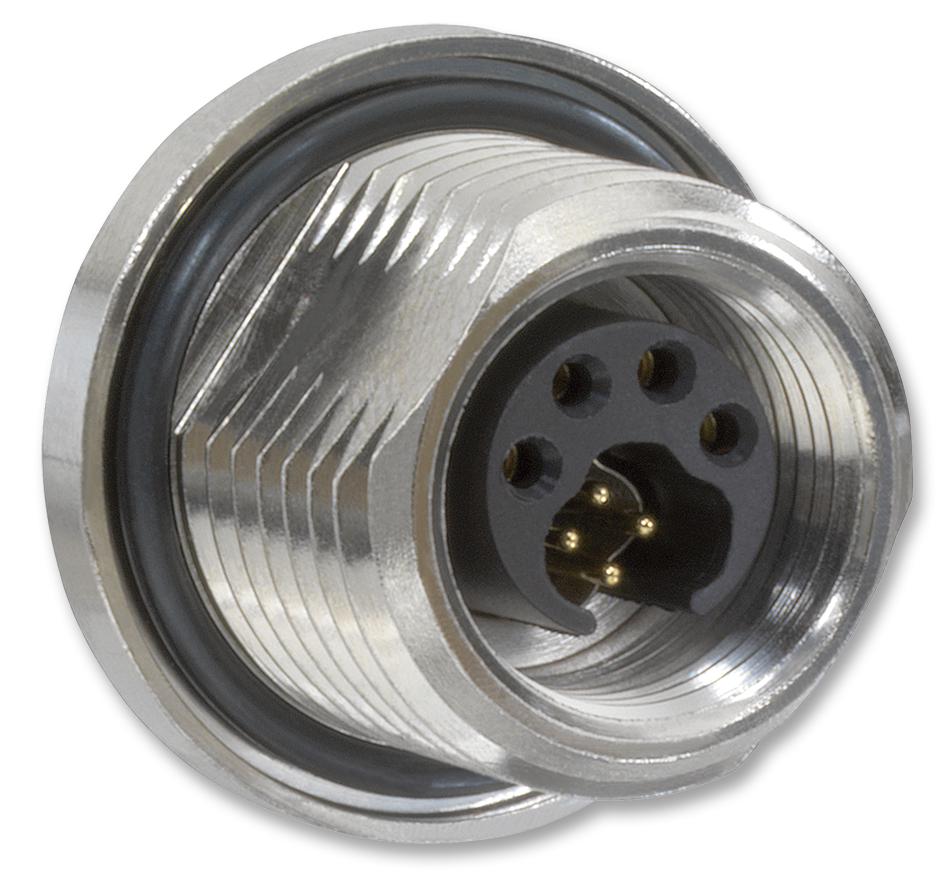

MOLEX 1202440002 Micro-Change M12 Circular Connector
The MOLEX 1202440002 is a Micro-Change® (M12) circular hybrid connector designed for industrial applications requiring both signal and power transmission. It utilizes a hybrid technology, combining signal and power contacts in a single connector. This connector is ideal for applications needing a robust, compact, and reliable connection with IP67 ingress protection. It is suitable for use in automated equipment, industrial networking, and power transmission systems.
MOLEX 1202440002 Micro-Change M12 Circular Connector Specifications:
- Product Family: Industrial Receptacles
- Series: 120244
- IP Rating: IP67
- Overview: brad_circular_hybrid_technology_cht_connector
- Type: Adapter
- Coupling Type: External Thread
- Gender: Female
- Keyway: Dual
- Material - Component: Stainless Steel Type 303
- Mounting: Threaded
- Thread Size: M12
- Weight: 22.091 g
- Orientation: Straight
- Poles: 8
- Operating Temperature: -25°C to +75°C
- Maximum Current per Contact: 6.0A
- Maximum Voltage: 30V
- UPC: 884982666979
- RoHS: China RoHS Compliant with Exemption 6(c)
- REACH: Not Contained Per ED/108/2014
- Halogen Status: Low-Halogen
Buy the 1202440002 MOLEX Micro-Change M12 Circular Connector | myMectronic
Purchase the MOLEX 1202440002 Micro-Change M12 Circular Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1202440002?
You can click on the BUY or RFQ button to purchase 1202440002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1202440002?
You can download the 1202440002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1202440002?
MOLEX
