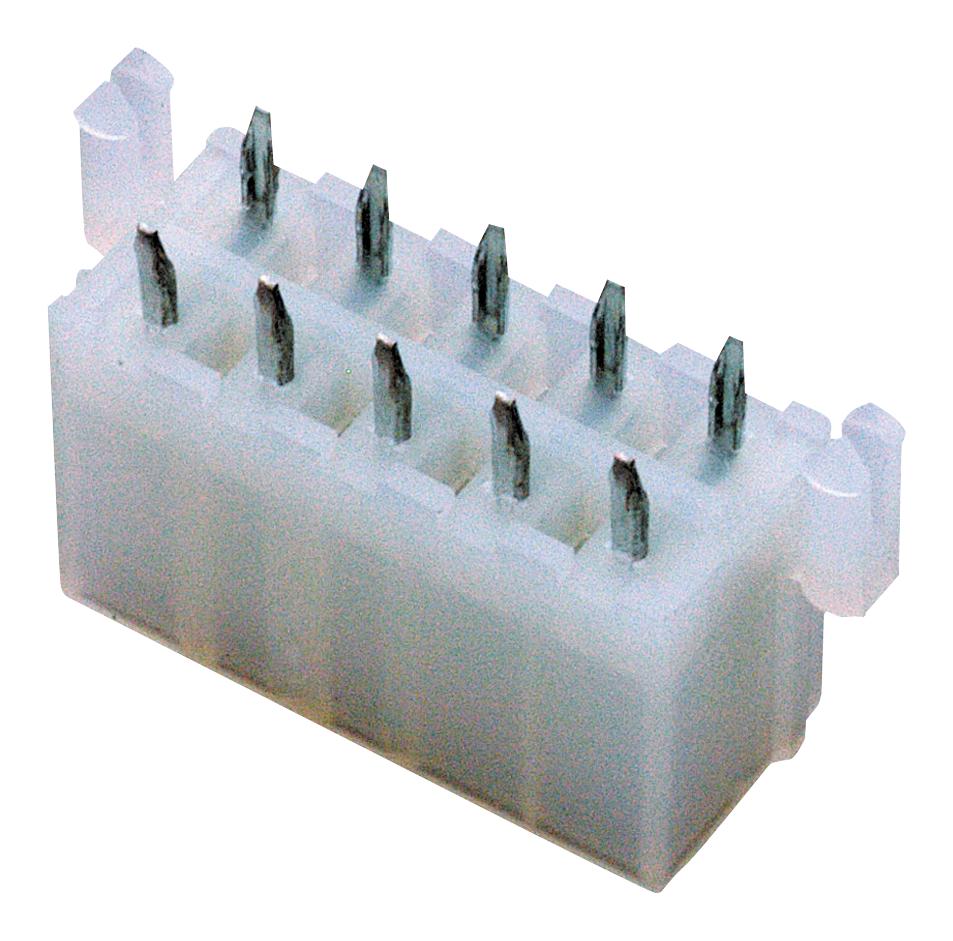

MOLEX 39299147 Power Connector
The Mini-Fit Jr. Vertical Header with 4.20mm pitch is a reliable power connector designed for wire-to-board applications. It features dual-row, 14 circuits with a snap-in plastic peg PCB lock, Tin plating, and natural color resin. Rated for a maximum of 9.0A per contact and up to 600V, it supports operating temperatures from -40°C to +105°C. The connector is RoHS and UL compliant, with PCB retention, polarized, and shrouded fully for secure connections. Suitable for power distribution in various electronic devices and industrial equipment.
MOLEX 39299147 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 14
- Maximum Current per Contact: 9.0A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Material: Metal - not specified; Resin - natural color
- Plating Minimum: 0.889um Tin
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole
- Mating Interface: 4.20mm pitch
- Number of Rows: Dual
- PCB Retention: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible: No
- Color - Resin: Natural
- Flammability: Not specified
- Agency Certifications: UL, CSA
- Durability (mating cycles max): Not specified
Buy the Molex Series 5566 Power Connectors: 39299147
Enhance your electronic assemblies with the Molex Series 5566 power connector, featuring 14 circuits, 4.20mm pitch, and a robust snap-in lock. Designed for durability, it supports up to 9A current and 600V voltage rating, suitable for various industrial power applications. The connector is RoHS and UL compliant, with a temperature range from -40°C to +105°C, ensuring consistent performance in demanding environments. Order online now to secure this reliable power connection solution for your projects, backed by high-quality manufacturing standards.
Order your Molex Series 5566 power connector with 14 circuits today and ensure your power distribution projects are reliable and efficient.
Frequently Asked Questions
Where can I buy MOLEX 39299147?
You can click on the BUY or RFQ button to purchase 39299147 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299147?
You can download the 39299147 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299147?
MOLEX
