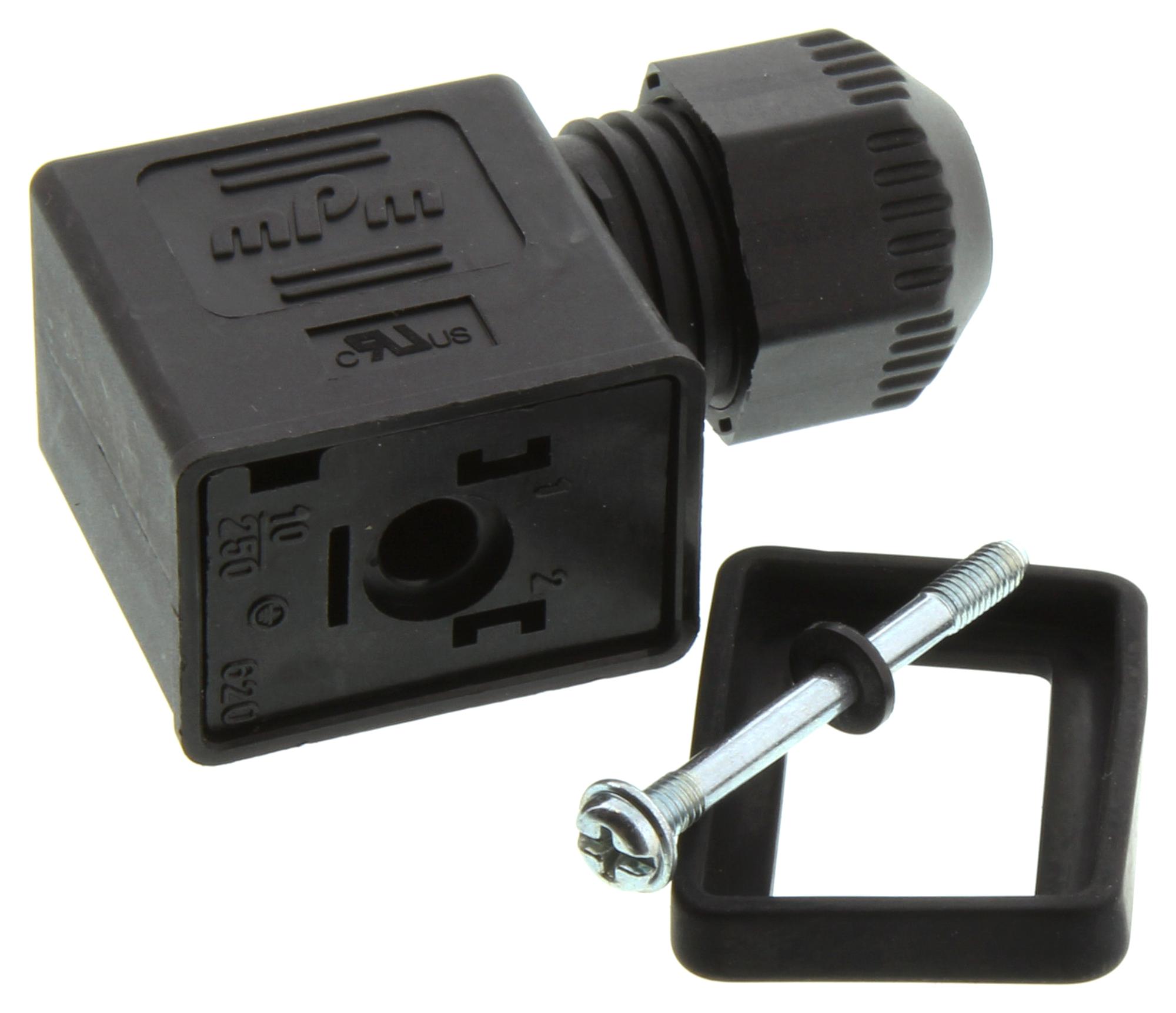

MOLEX 1212030013 DIN Valve Connector
The mPm DIN Valve Connector is a robust, form B-10mm connector designed with an external thread, 2 poles plus ground, suitable for industrial automation and fluid control systems. It features a black Nitrile gasket, UL94-VO flame rating, and IP65/IP67 protection ratings for durable outdoor and industrial use. Crafted from high-quality brass and polyamide, it supports a maximum voltage of 250V AC/DC and a current of 16.0A. Operating within -40°C to +90°C, this connector ensures reliable, corrosion-resistant connections for valve and sensor applications.
MOLEX 1212030013 DIN Valve Connector Specifications:
- Form B-10mm
- IP Rating: IP65, IP67
- Material - Contact: Brass
- Material - Connector Body: Polyamide
- Material - Coupling Nut: N/A
- Material - Plating Mating: Silver
- Temperature Range - Operating: -40°C to +90°C
- Voltage - Maximum: 250V AC/DC
- Current - Maximum per Contact: 16.0A
- Coupling Type: External Thread
- Poles: 2 plus ground
- Cable Diameter: N/A
- Gender: N/A
- Keyway: No
- Orientation: 90° Angle
- Dimensions: 10.00mm pitch, 2 poles
- Certification: UL Listed
- RoHS Compliance: Yes
- Halogen-Free: Not reviewed
- REACH SVHC: Not reviewed
Buy the Buy Molex mPm DIN Valve Connector Part Number 1212030013 Online
Purchase the Molex DIN Valve Connector online today for your industrial and fluid control projects. This high-quality, IP65/IP67 rated connector features a rugged brass and polyamide build, supporting 250V and 16A for safe, reliable operation in demanding environments. Its external thread and 90° angle design make installation straightforward and secure. Perfect for automation systems, valves, and sensors, this UL-listed connector ensures long-lasting durability and excellent performance in temperatures from -40°C to +90°C. Order now for fast delivery and quality assurance.
Get Molex 1212030013 today—designed for industrial automation, fluid control with IP65/IP67 protection, ensuring durability and reliable connections.
Frequently Asked Questions
Where can I buy MOLEX 1212030013?
You can click on the BUY or RFQ button to purchase 1212030013 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1212030013?
You can download the 1212030013 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1212030013?
MOLEX
