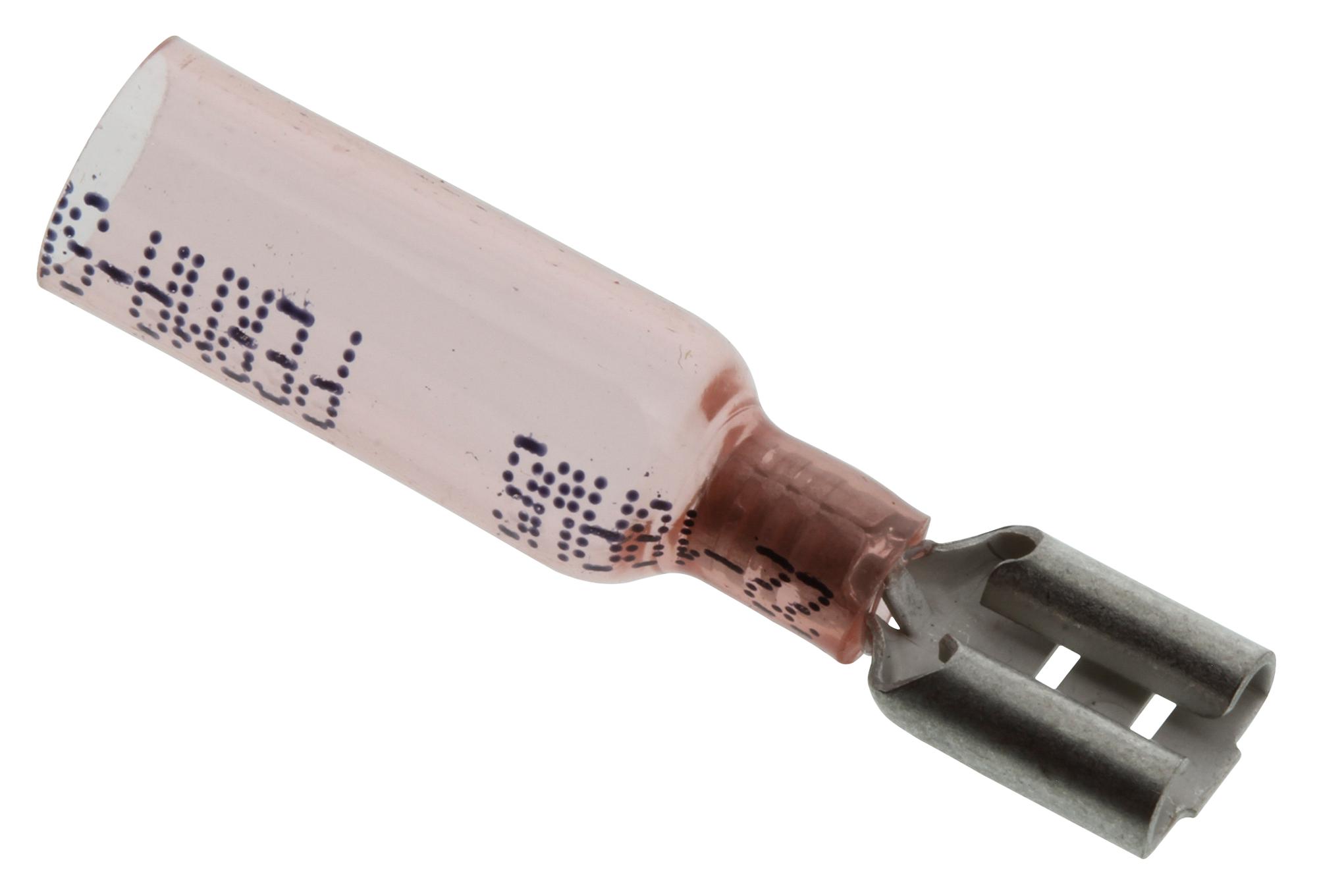

MOLEX 191640012 Female Quick Disconnect
The Perma-Seal Female Quick Disconnect is designed for 18-22 AWG wire, featuring a tab size of 6.35 x 0.81mm. It offers secure crimping, reliable connection, and high-temperature resistance from -55°C to +125°C. Made from brass with tin plating, it provides durability, corrosion resistance, and a halogen-free red resin insulation. Suitable for quick and secure electrical connections, this female terminal is compatible with application tooling and rated up to 600V, ensuring safety and efficiency in electrical assemblies.
MOLEX 191640012 Female Quick Disconnect Specifications:
- Material: Brass with tin plating
- Color: Red, Halogen-Free Resin
- Tab Size: 6.35 x 0.81mm
- Wire Range: 18-22 AWG
- Temperature Range: -55°C to +125°C
- Voltage Rating: 600V
- Crimp Height: As per application tooling specifications
- Insulation Diameter: Max. 5.97mm
- Net Weight: 0.943g
- Orientation: Straight
- Lock to Mating Part: None
- Packaging: Bag
- Product Family: Perma-Seal
- Series: 19164
- Part Number: 0191640012
Buy the Molex Series 19164 Perma-Seal Female Quick Disconnect: 0191640012
Purchase the Molex Series 19164 Perma-Seal Female Quick Disconnect online today to ensure reliable electrical connections for your wiring projects. Designed for 18-22 AWG wire with a durable brass construction and tin plating, it offers excellent corrosion resistance and high-temperature performance from -55°C to +125°C. The halogen-free red resin insulation provides added safety, while the rated 600V capacity guarantees power efficiency and safety. Perfect for quick, secure, and maintenance-friendly electrical assembly solutions for professional and DIY applications.
Order your Molex Series 19164 Perma-Seal Female Quick Disconnect today and give your projects the dependable, high-quality electrical connection they deserve.
Frequently Asked Questions
Where can I buy MOLEX 191640012?
You can click on the BUY or RFQ button to purchase 191640012 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191640012?
You can download the 191640012 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191640012?
MOLEX
