MOLEX 1300130426 Mini-Change Receptacle Connector

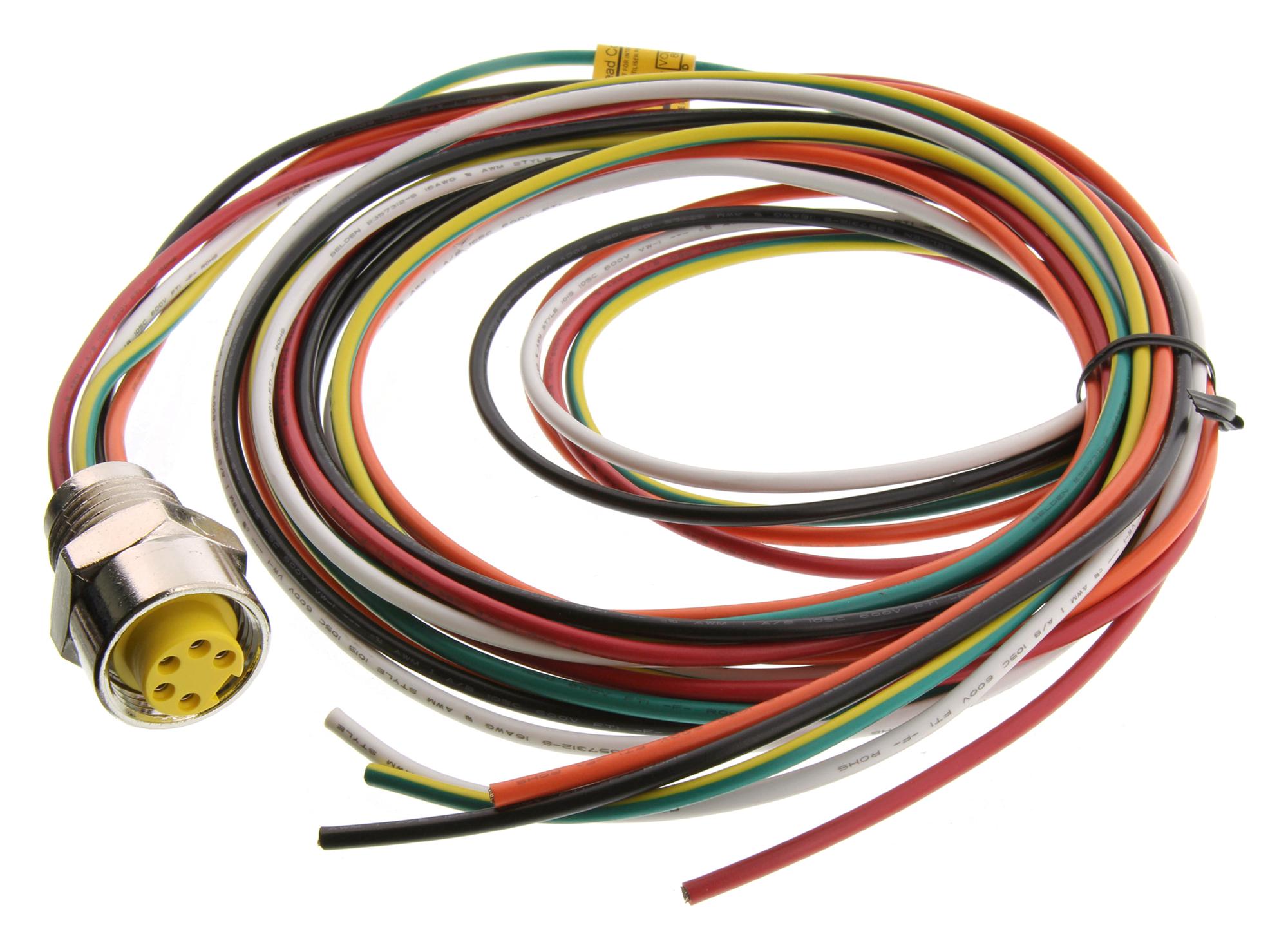

The MOLEX 130013-0426 is a Mini-Change A-Size Receptacle connector designed for industrial applications. It features a female (straight) connector with 5 poles, a 1/2"-14 NPT thread, and a 2.0m (6.56') length. Constructed with nickel-plated zinc die-cast, this connector offers durability and corrosion resistance. It is suitable for applications requiring a secure and reliable connection in harsh environments.
Authorized Distributors
Source:Mouser Electronics
Part No:1300130426
Stock:18
Inv Date:05-30-2026
Price: Unit price: $52.92
Buy/RFQ:
Source:RS Americas, Inc
Part No:130013-0426
Stock:0
Inv Date:05-29-2026
Price: Unit price: $56.11
Buy/RFQ:
Source:RS Americas, Inc
Part No:1300130426
Stock:0
Inv Date:05-29-2026
Price: Unit price: $45.03
Buy/RFQ:
Source:Master Electronics
Part No:1300130426
Stock:8
Inv Date:05-29-2026
Price: Unit price: $55.23
Buy/RFQ:
Source:Onlinecomponents.com
Part No:1300130426
Stock:8
Inv Date:05-29-2026
Price: Unit price: $55.23
Buy/RFQ:
MOLEX 1300130426 Mini-Change Receptacle Connector Specifications:
- overview: Brad Mini-Change Connectors
- product_family: Industrial Receptacles
- ip_rating: IP67
- coupling_type: Internal Thread
- gender: Female
- keyway: Single
- length: 2.0m
- material: Nickel-plated Zinc Die-Cast
- mounting_thread_size: 1/2" - 14 NPT
- net_weight: 265.050/g
- orientation: Straight
- poles: 5
- operating_temperature_range: -20°C to +105°C
- wire_size: 16 AWG
- wire_cable_type: UL 1015
- maximum_current_per_contact: 8.0A
- maximum_voltage: 600V AC/DC
- upc: 78678887611
- engineering_number: 1R5000A20M020
- drawing_number: SD-130013-087
- elv: Not Relevant
- rohs: Not Compliant
- reach_svhc: Di-(2-ethylhexyl)phthalate (DEHP)
- halogen_free_status: Not Low-Halogen
