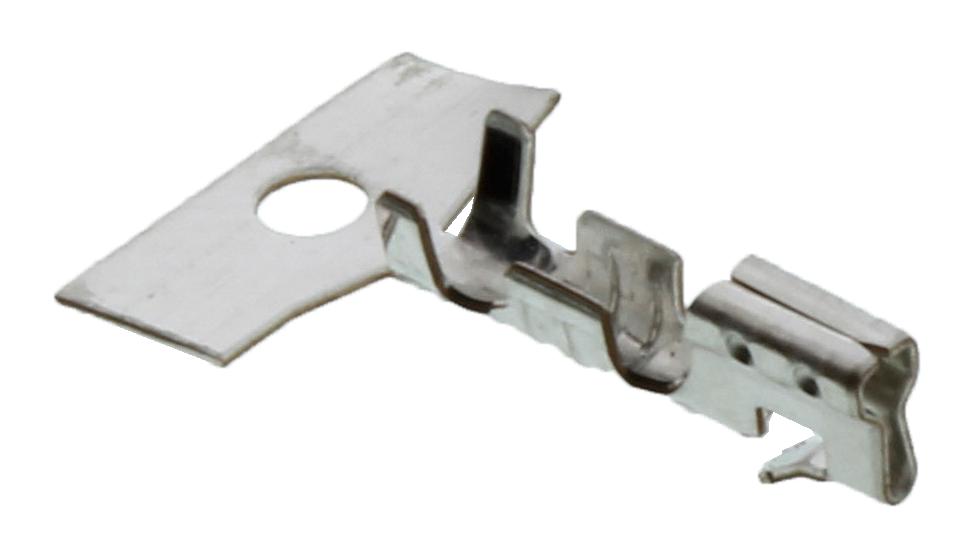

MOLEX 08700058 SPOX Crimp Terminal
The MOLEX 08-70-0058 SPOX Crimp Terminal is a robust solution for wire-to-board connections. Constructed from phosphor bronze and finished with tin plating, this terminal ensures reliable electrical contact and corrosion resistance. Designed for use with 22-28 AWG wire, it's ideal for applications requiring a secure and durable connection. The terminal's design allows for a maximum of 30 mating cycles, making it suitable for various industrial and commercial applications. It is part of the 5103 series and is RoHS compliant.
MOLEX 08700058 SPOX Crimp Terminal Specifications:
- status: Active
- overview: SPOX BMI Connector System
- description: SPOX Crimp Terminal 5103, 22-28 AWG, Reel, Phosphor Bronze (CuSn), Chain Type
- application: Wire-to-Board
- durability_mating_cycles_max: 30
- gender: Female
- material_metal: Phosphor Bronze (CuSn)
- material_plating_mating: Tin
- material_plating_termination: Tin
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.90mm
- wire_size_awg: 22, 24, 26, 28
- wire_size_mm2: N/A
- current_max_per_contact: 3.0A
- voltage_max: 250V
- lead_free_process_capability: N/A
- engineering_number: 5103PBT
- net_weight: N/A
- packaging_type: Reel
