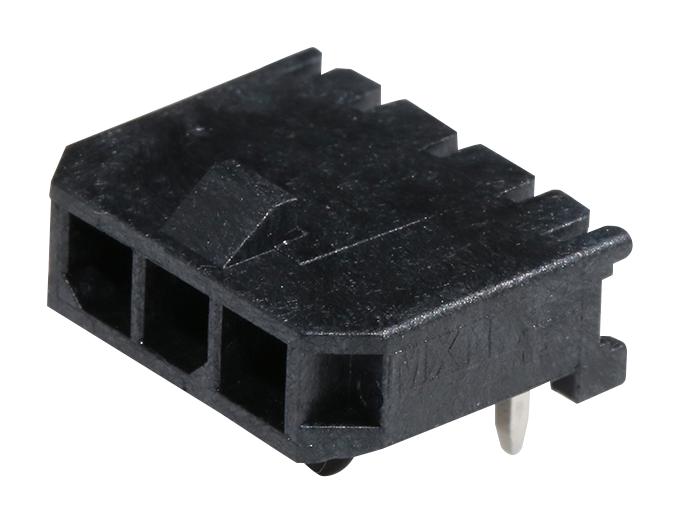

MOLEX 436500302 Power Connector
This Micro-Fit 3.0 right-angle header features a 3.00mm pitch, single row with 3 circuits, and snap-in plastic peg PCB lock. Made from high-temperature thermoplastic with gold-plated brass contacts, it is glow-wire capable and rated for temperatures from -40°C to +105°C. It complies with UL and CSA standards, offering a maximum current of 8.5A and voltage of 600V. Suitable for power and wire-to-board applications, it ensures durability with up to 30 mating cycles and is designed for reliable PCB connection in various electronic assemblies.
MOLEX 436500302 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 3
- Circuits (max): 3
- Color - Resin: Black
- Durability: 30 mating cycles
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Temperature Range - Operating: -40°C to +105°C
- Current - Max per Contact: 8.5A
- Voltage - Max: 600V
- Solder Process Data: 260°C for 5 seconds
- Packaging Type: Tray
- Pitch - Mating Interface: 3.00mm
- PCB Thickness - Recommended: 1.60mm
Buy the Buy Molex Micro-Fit 3.0 Part Number 436500302 Online
Order the Molex Micro-Fit 3.0 right-angle connector with 3 circuits and 3.00mm pitch online today. Designed for power and wire-to-board applications, it features gold-plated contacts, high-temperature thermoplastic construction, and glow-wire capability, ensuring safety and durability. Perfect for electronic assemblies requiring reliable connections, this connector supports up to 8.5A and 600V, with a maximum of 30 mating cycles. Easy to install via tray packaging, it is ideal for demanding industrial and consumer electronics.
Buy Molex 436500302 now and experience unmatched reliability and performance in power and wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 436500302?
You can click on the BUY or RFQ button to purchase 436500302 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500302?
You can download the 436500302 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500302?
MOLEX
