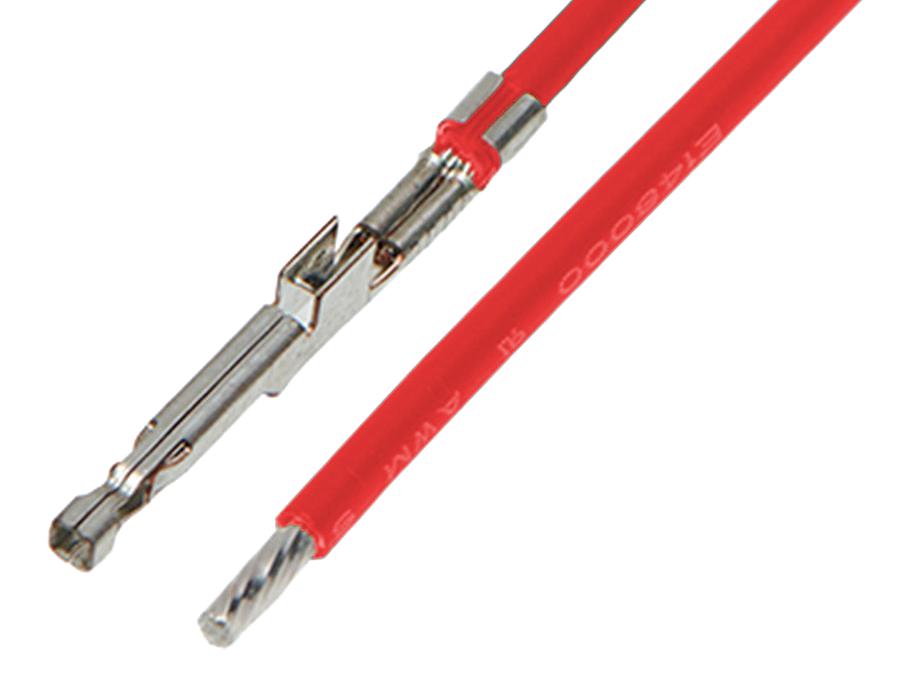

MOLEX 2174712101 Female Power Cable
Molex's 217471 series offers pre-crimped female-to-pigtail cable assemblies designed for quick and cost-effective prototyping, pre-production, and mass production applications. These assemblies feature a red resin housing, high-conductivity copper contacts with tin plating, and are rated for 600V AC/DC with a maximum of 12A per contact. Using 20 AWG wire, they meet UL 1061 standards and are fully tested, simplifying assembly processes. Ideal for diverse industrial and electronic applications, they help streamline product development and reduce time to market with reliable, efficient connections.
MOLEX 2174712101 Female Power Cable Specifications:
- Cable Length: 75.00mm
- Wire Size: 20 AWG
- Wire Insulation Diameter: 2.03-2.39mm
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Tin
- Color - Resin: Red
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC/DC
- Termination Interface: Crimp or Compression
- Connector Gender: Female-Pigtail
- Application: Power, Wire-to-Board
- Packaging Type: Bag
- Application: Connector to Connector
- Standards: UL 1061
- Net Weight: 0.658g
- Status: Active
- RoHS Compliance: Yes
Buy the Buy Molex Ultra-Fit Female-to-Pigtail Part Number 2174712101 Online
Purchase Molex's Ultra-Fit Female-to-Pigtail cable assembly online for dependable power connections in various electronic and industrial projects. Designed with a red resin housing, tin-plated copper contacts, and rated for 600V, it supports up to 12A per contact. This fully tested pre-crimped cable simplifies assembly, reduces production time, and ensures high reliability. Perfect for prototyping, pre-production, and mass manufacturing, it provides a cost-effective, efficient solution for streamlined product development and quick deployment in diverse applications.
Get Molex 2174712101 today—built for reliable power connections in prototyping and production, featuring quick assembly and long-lasting durability.
