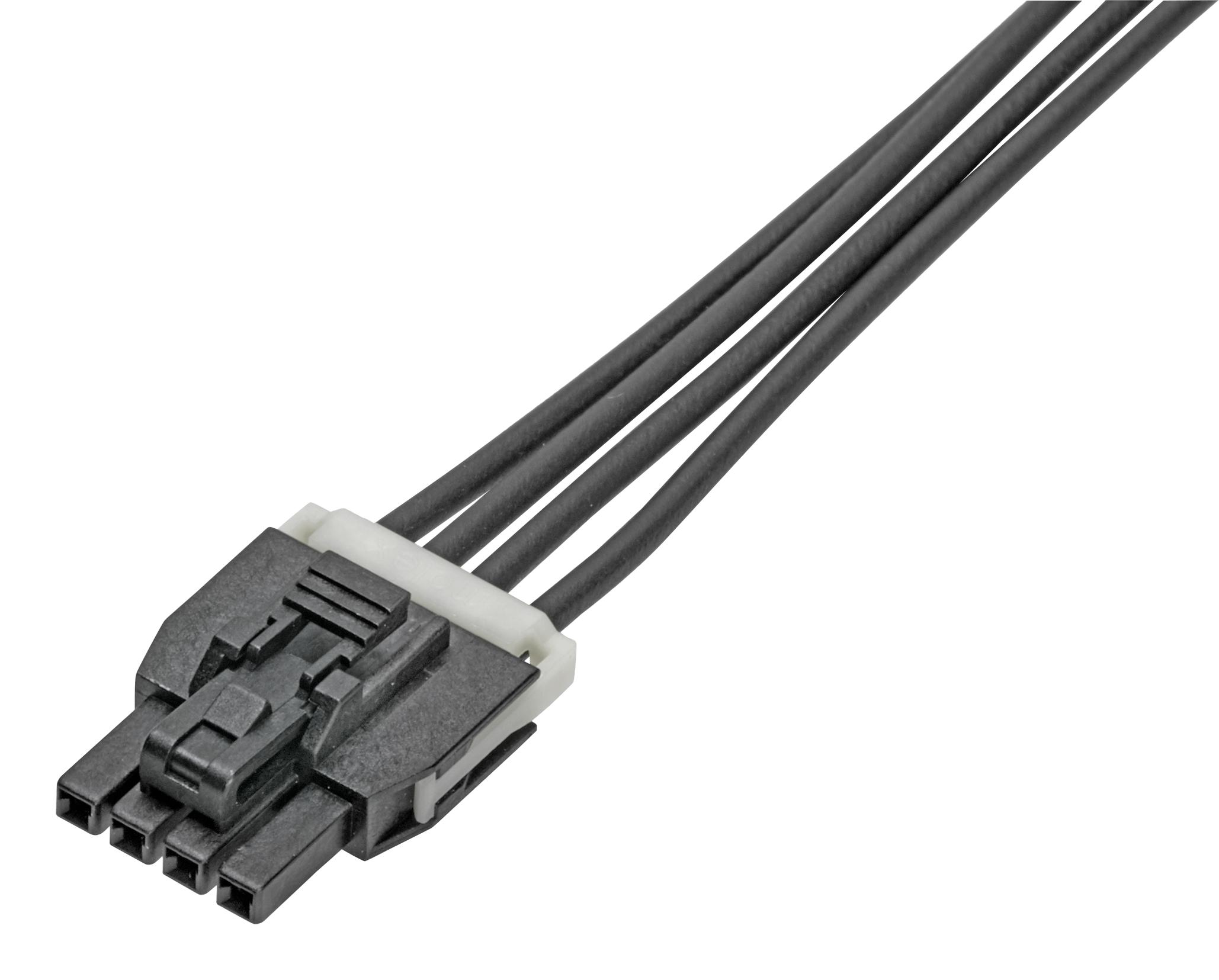

MOLEX 1451300401 Nano-Fit Cable Assembly
The MOLEX 145130-0401 is a Nano-Fit-to-Nano-Fit off-the-shelf (OTS) cable assembly designed for wire-to-board power applications. It boasts a 150mm length, 4 circuits, and a black resin overmold. Constructed with high conductivity copper and matte tin plating, this assembly ensures reliable electrical connections. It is RoHS compliant and features a dual-ended configuration with female-female gender. The assembly is ideal for applications requiring compact and efficient power transmission.
MOLEX 1451300401 Nano-Fit Cable Assembly Specifications:
- Series: 145130
- Application: Power, Wire-to-Board
- Assembly Configuration: Dual Ended
- Connectors: Nano-Fit-to-Nano-Fit
- Overmolded: No
- Cable Length: 150.00mm
- Circuits (Loaded): 4
- Color: Black
- Gender: Female-Female
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Net Weight: 6.556/g
- Packaging Type: Bag
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Mates With: Nano-Fit Headers 105309, 105311, 105318
- Termination Interface: Style: Crimp or Compression
