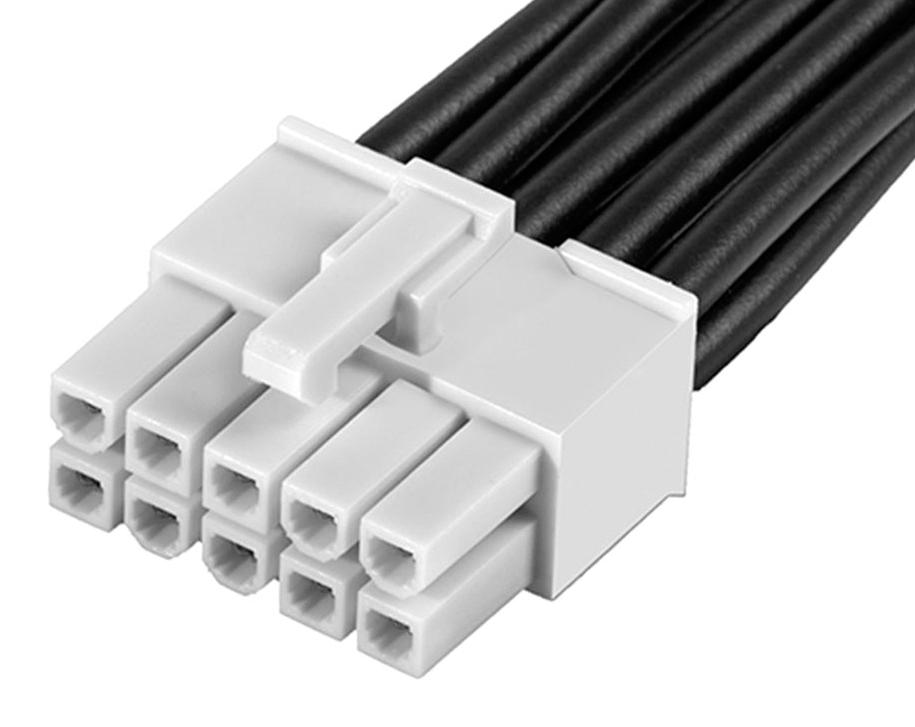

MOLEX 2153271103 Power Cable Assembly
This Mini-Fit Jr. male-to-male off-the-shelf cable assembly features dual-row connectors with a 600mm length, tin-plated contacts, and a black nylon insulator. Designed for power and discrete wire applications, it supports up to 10 circuits with a maximum current of 9.0A per contact and a voltage rating of 600V. The assembly’s crimp or compression termination and UL 1015 rated wire make it reliable for industrial wiring needs, offering a robust solution for power distribution and electronic assemblies in various environments.
MOLEX 2153271103 Power Cable Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 10
- Color - Resin: Black
- Gender: Male-Male
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 2.540mm
- Wire Size AWG: 16
- Temperature Rating: Not specified, suitable for standard industrial environments
- Electrical: Current - Maximum per Contact: 9.0A, Voltage - Maximum: 600V
- Termination Interface: Style: Crimp or Compression
- Connection Type: Connector to Connector
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- RoHS Compliance: Yes
- UL Rating: UL 1015
- Net Weight: 140.615 grams
Buy the Molex 215327 U–2013 Reliable Power Cable for Industrial Applications
Enhance your industrial wiring setup with the Molex Mini-Fit Jr. power cable assembly. Featuring dual-row connectors, 600mm length, up to 10 circuits, and tin-plated contacts, this robust assembly supports 9A at 600V. The crimp or compression termination ensures secure, reliable connections. Made with high-quality nylon insulation and brass metal parts, it meets UL 1015 standards and RoHS compliance, making it ideal for power distribution in manufacturing, automation, and electronic systems. Order online now for fast delivery and dependable performance.
Order your Molex Series215327 600mm Power Cable Assembly today and ensure reliable power connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 2153271103?
You can click on the BUY or RFQ button to purchase 2153271103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153271103?
You can download the 2153271103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153271103?
MOLEX
