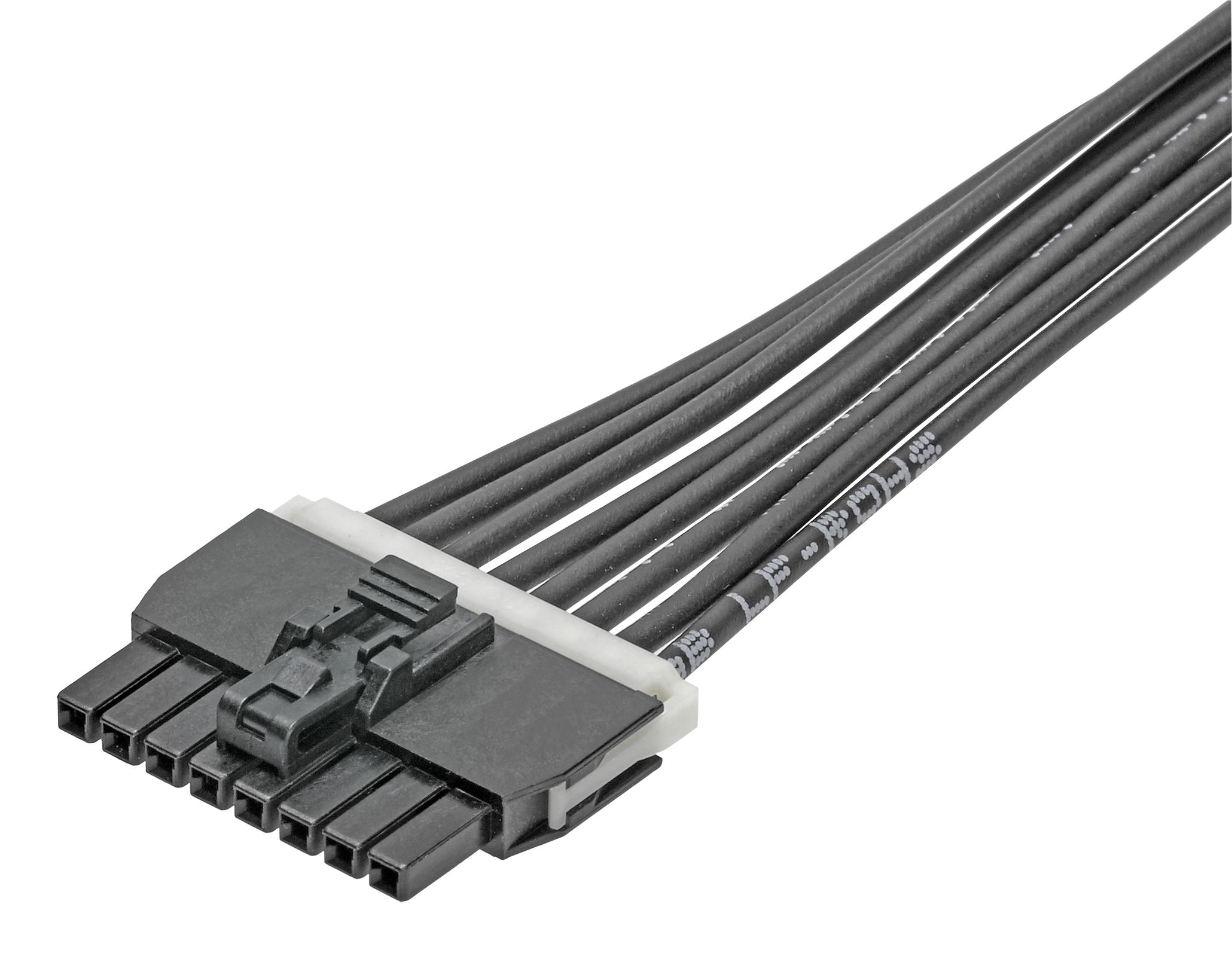

MOLEX 1451300800 Nano-Fit OTS Cable Assembly
The MOLEX 145130-0800 Nano-Fit power connector cable assembly provides a robust and reliable connection solution for wire-to-board applications. Designed with a Nano-Fit connector on both ends, this assembly offers a compact and efficient solution for power transmission. It boasts a 75.00mm length, 8 circuits, and is constructed with high-conductivity copper and a durable nylon resin housing. Compliant with RoHS standards, this assembly is suitable for a wide range of industrial and consumer electronic applications where secure and efficient power delivery is essential.
MOLEX 1451300800 Nano-Fit OTS Cable Assembly Specifications:
- Overview: Nano-Fit Power Connectors
- Series: 145130
- Application: Power, Wire-to-Board
- Configuration: Dual Ended
- Connector Type: Nano-Fit-to-Nano-Fit
- Length: 75.00mm
- Circuits: 8
- Color: Black
- Gender: Female-Female
- Material - Resin: Nylon
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Metal: High Conductivity Copper
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Wire Insulation Diameter: 1.57mm
- Net Weight: 8.769/g
- Mates With: Nano-Fit Headers 105309, 105311, 105333
Buy the 145130-0800 MOLEX Nano-Fit OTS Cable Assembly | myMectronic
Purchase the MOLEX 145130-0800 Nano-Fit Cable Assembly securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1451300800?
You can click on the BUY or RFQ button to purchase 1451300800 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1451300800?
You can download the 1451300800 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1451300800?
MOLEX
