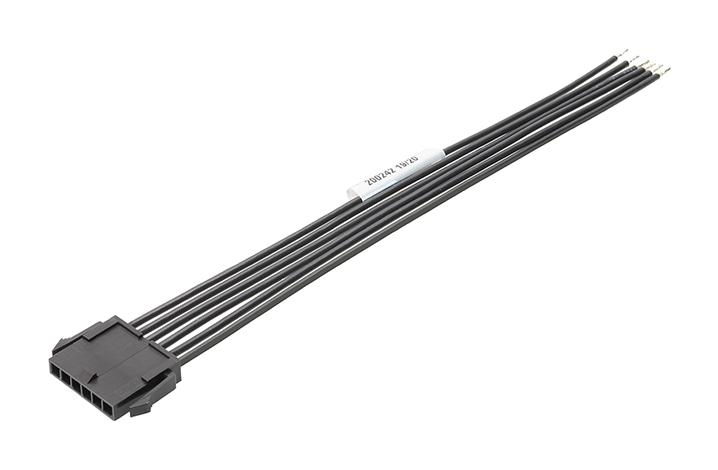

MOLEX 2147512053 Micro-Fit 3.0 Cable Assembly
The MOLEX 214751-2053 is a Micro-Fit 3.0 female-to-pigtail cable assembly designed for power and wire-to-board applications. It offers a robust connection solution with gold plating on the mating interface and tin plating on the termination interface. The assembly is 600mm in length, features 5 circuits, and is constructed with phosphor bronze and nylon materials. It is RoHS compliant and suitable for various industrial and commercial applications requiring reliable power transmission.
MOLEX 2147512053 Micro-Fit 3.0 Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Series: 214751
- Application: Power, Wire-to-Board, Wire-to-Wire Assembly
- Configuration: Dual Ended
- Connectors: Micro-Fit 3.0-to-Pigtail
- Cable Length: 600.00mm
- Circuits (Loaded): 5
- Color: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold (Au)
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 34.390/g
- Number of Rows: 1
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Single Ended: Yes
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 18
- Wire/Cable Type: Discrete Wire, UL 10002
- Current - Maximum per Contact: 8.5A
- UPC: 193264585588
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- Mates With: Micro-Fit 3.0 Plug Housings (43640), Micro-Fit TPA Plug Housing (200875), Micro-Fit 3.0 Headers (43650)
- Reference - Drawing Numbers: Sales Drawing 2147512051-000
