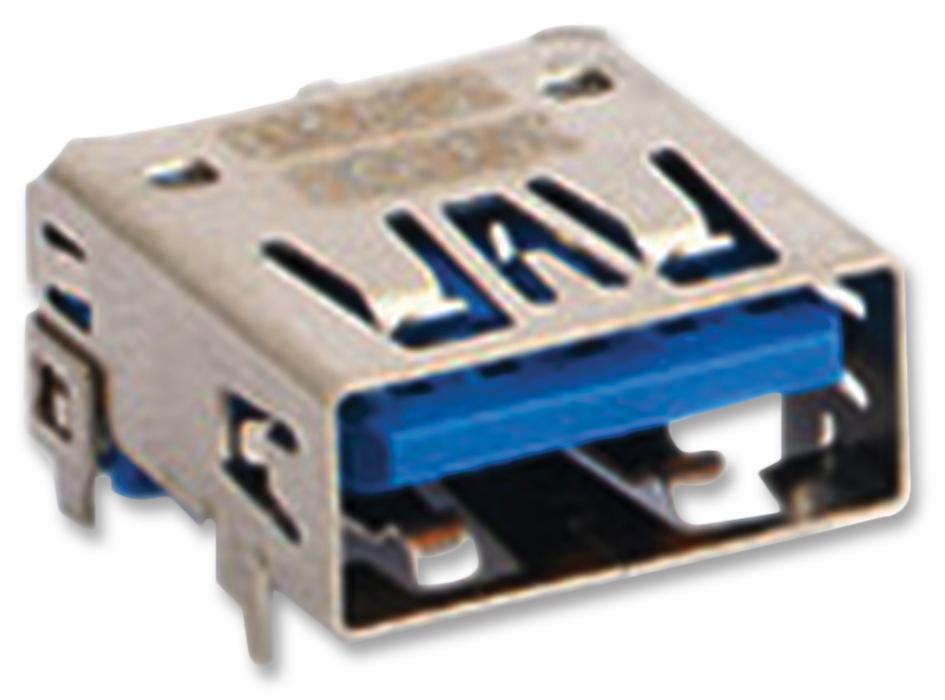

MOLEX 483930003 USB 3.0 Receptacle
The USB 3.0 I/O Receptacle is a high-temperature, right-angle Type A connector with high-quality gold-plated contacts, designed for reliable data transmission in industrial applications. Made with durable blue nylon and a copper alloy body, it supports up to 1.8A current and 30V voltage, with a contact height of 4.00mm. Suitable for PCB mounting with through-hole design, it ensures durability with up to 5000 mating cycles. Ideal for USB 3.0 data connections in demanding environments, offering RoHS compliance and high-temperature resistance.
MOLEX 483930003 USB 3.0 Receptacle Specifications:
- Component Type: Receptacle
- Series: 48393
- Application: Wire-to-Board
- Color - Resin: Blue
- Durability: 5000 mating cycles
- Gender: Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Nickel, Tin
- Material - Plating Termination: Gold
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 3.630 grams
- Number of Rows: 1
- Orientation: Right Angle
- PC Tail Length: 1.10mm
- PCB Locator: Yes
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Port: 1
- Temperature Range - Operating: -20°C to +85°C
- Termination Interface: Through Hole
- Current - Maximum per Contact: 1.8A
- Voltage - Maximum: 30V AC/DC
- RoHS Compliant: Yes
- UL/CSA: Not specified
- Appearance: Blue nylon with gold-plated contacts
- Dimensions: Contact height 4.00mm, PCB hole size 1.10mm
Buy the Molex 0483930003 – Reliable USB 3.0 Data Connector for Industrial Applications
Purchase the Molex USB 3.0 Receptacle online today and equip your industrial projects with high-quality, reliable connections. Featuring gold-plated contacts, a robust blue nylon body, and a right-angle design, this connector supports up to 1.8A current and 30V voltage, ensuring stable data transfer in demanding environments. With a durability of 5000 mating cycles and RoHS compliance, it offers superior performance for PCB applications. Order now for fast delivery and dependable connectivity in your industrial systems.
Order your Molex Series 48393 USB 3.0 Receptacle today and ensure high-speed data transfer with durable, industrial-grade reliability.
Frequently Asked Questions
Where can I buy MOLEX 483930003?
You can click on the BUY or RFQ button to purchase 483930003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 483930003?
You can download the 483930003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 483930003?
MOLEX
