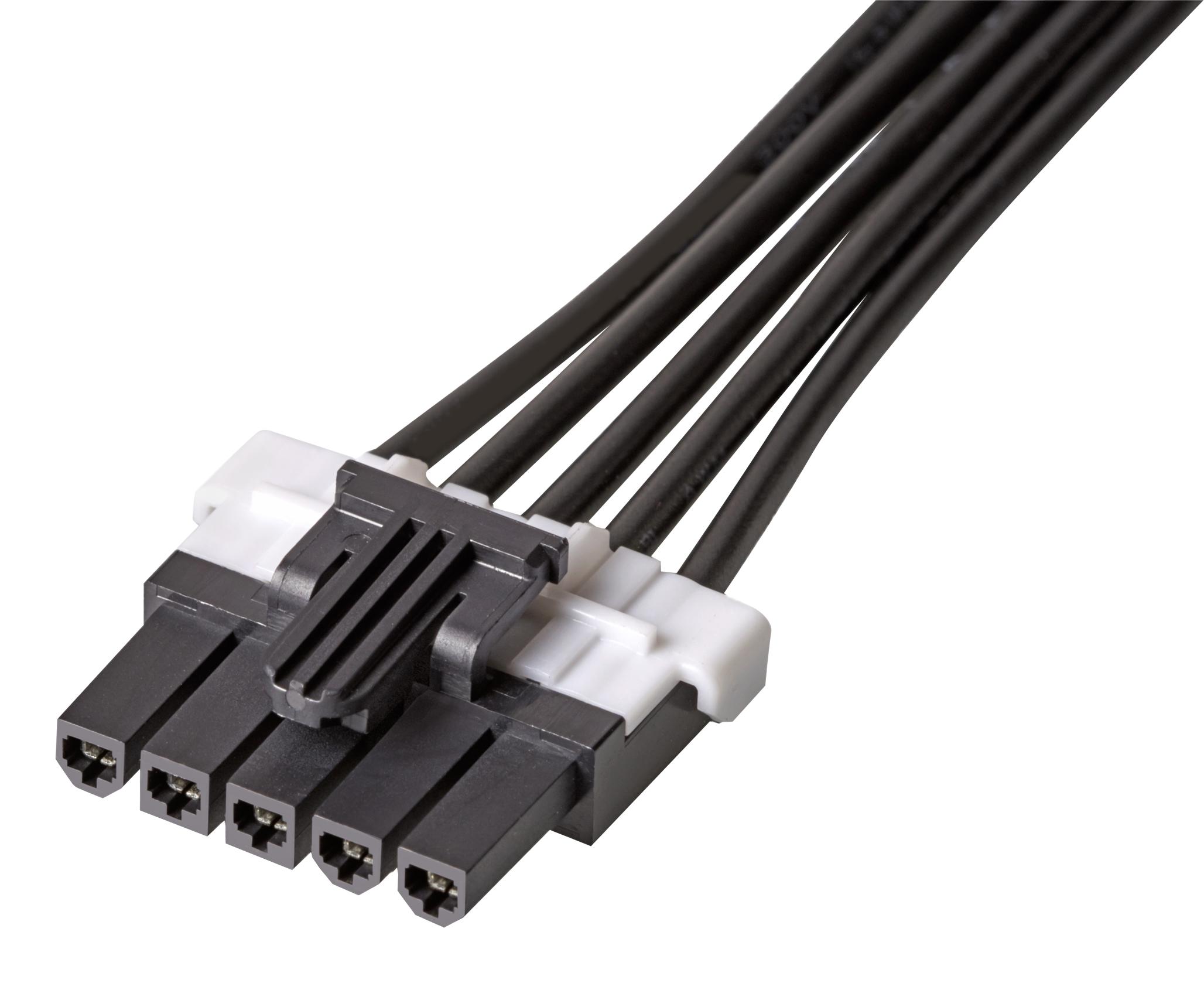

MOLEX 1451350503 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0503 is an off-the-shelf discrete cable assembly designed for reliable power transmission in various applications. It connects two Mini-Fit TPA2 connectors, offering a robust and convenient solution for wire-to-board and wire-to-wire connections. The assembly features a 300mm length, 5 circuits, and a black nylon resin overmold for enhanced durability and insulation. It is RoHS compliant and suitable for applications requiring a secure and efficient power connection.
MOLEX 1451350503 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 300.00mm
- circuits_loaded: 5
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 30.864
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_insulation_diameter_mm: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact_a: 11.0
- voltage_max_acdc_v: 600
- material_info: Not Contained Per - ED/61/2018 (27 June 2018)
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit TPA2 Plug Housing 200471, 200488; Mini-Fit Jr. Plug Housing 5559; Mini-Fit Jr. Headers 5566, 5569
- drawing_number: 4000095328-000
