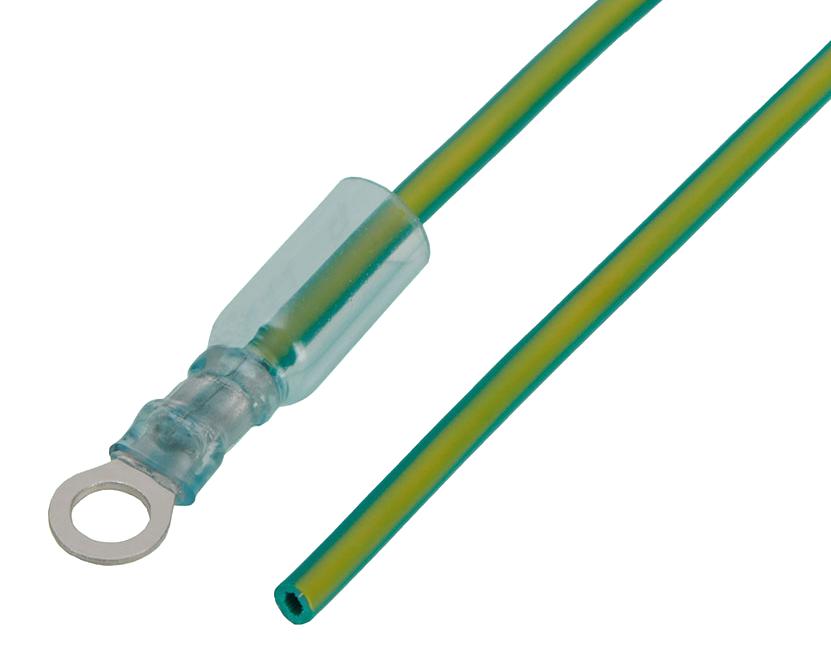

MOLEX 2178511146 Pre-crimped Lead
The pre-crimped lead features a Perma-Seal-to-Pigtail design with solderless connection, tin plating for corrosion resistance, and a length of 600mm. It is part of the 217851 series, suitable for connector-to-connector assembly with a single-ended configuration and green-yellow coloration. This assembly supports up to 20A current and 600V voltage, making it ideal for secure, reliable electrical connections in various electronic and industrial applications. The insulation diameter is 5.97mm, and it conforms to RoHS and UL standards, ensuring safety and environmental compliance.
MOLEX 2178511146 Pre-crimped Lead Specifications:
- Cable Length: 600.00mm
- Color: Green, Yellow
- Circuits (Loaded): 1
- Wire Insulation Diameter: 5.97mm
- Wire Size: 16 AWG
- Material - Plating: Tin
- Material - Resin: PVC
- Current - Maximum per Contact: 20.0A
- Voltage - Maximum: 600V
- UL Standard: UL 1015
- RoHS Compliance: Yes
- Halogen-Free: No
- Assembly Configuration: Connector to Connector
- Net Weight: 13.960g
- Packaging: Bag
- Gender: N/A
- Lock to Mating Part: No
- Reference Drawing Number: 2178511112-000
Buy the Molex Series 217851 Pre-Crimped Lead: 2178511146
Order the Molex 2178511146 pre-crimped lead online today to ensure secure, corrosion-resistant electrical connections in your industrial or electronic projects. Featuring tin plating for excellent durability, this 600mm long assembly supports up to 20A current and 600V voltage, making it ideal for connector-to-connector applications. Its environmentally friendly RoHS compliant design and easy installation process help streamline your manufacturing operations. Buy now and get reliable, high-quality leads delivered directly to your workspace for your next project.
Buy Molex 2178511146 now and experience unmatched reliability and high current capacity with environmentally compliant pre-crimped leads.
