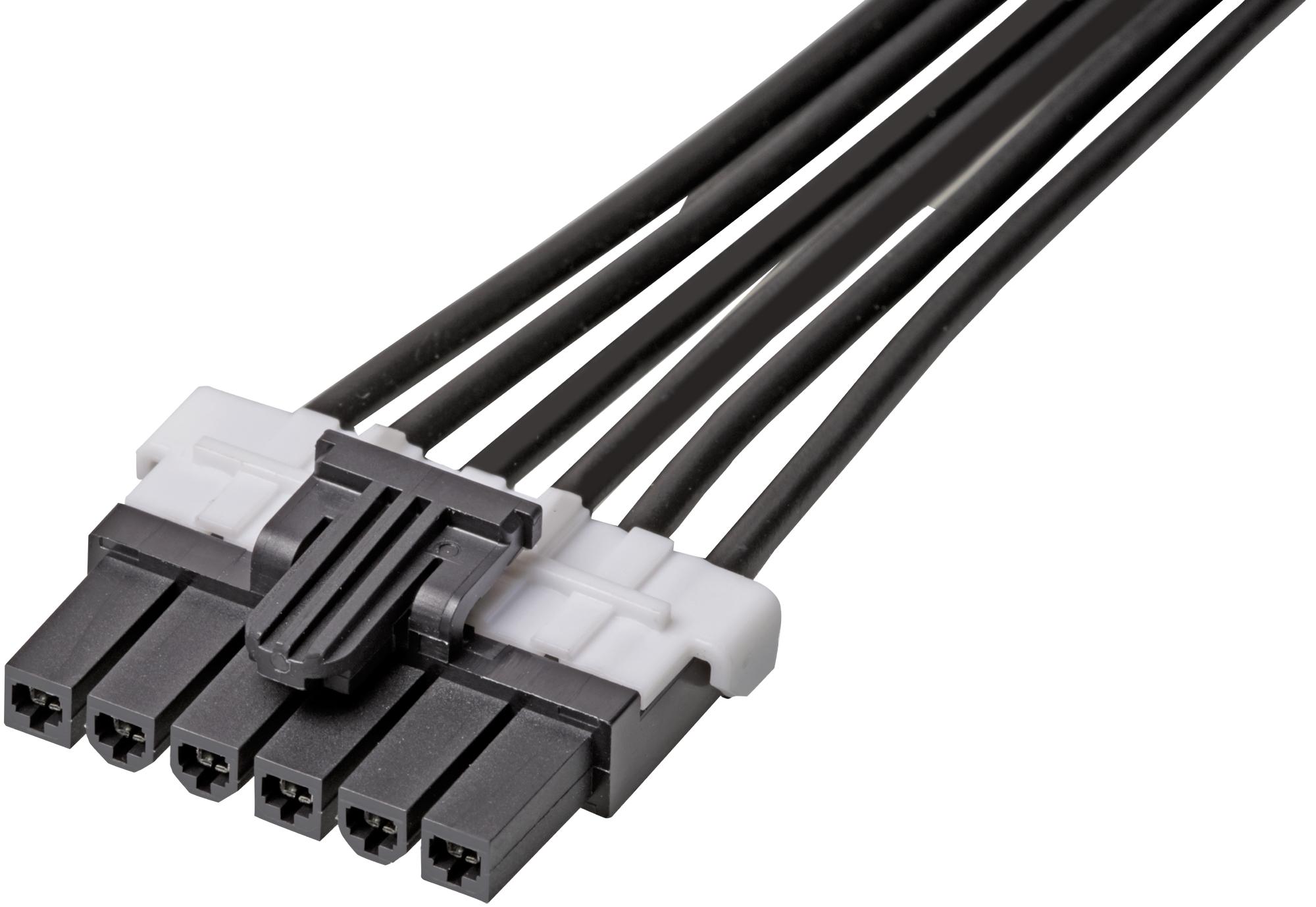

MOLEX 1451350600 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0600 is a Mini-Fit TPA2 to Mini-Fit TPA2 off-the-shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly offers a convenient and reliable connection solution with a 75mm length and 6 circuits. Constructed with phosphor bronze and nylon materials, and featuring tin plating on both mating and termination interfaces, it ensures excellent conductivity and durability. It is RoHS compliant and suitable for various industrial and commercial applications requiring a secure and efficient power transmission.
MOLEX 1451350600 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2
- cable_length: 75.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 16.132/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact: 11.0A
- voltage_max: 600V AC/DC
- sales_drawing: 4000095329-000
