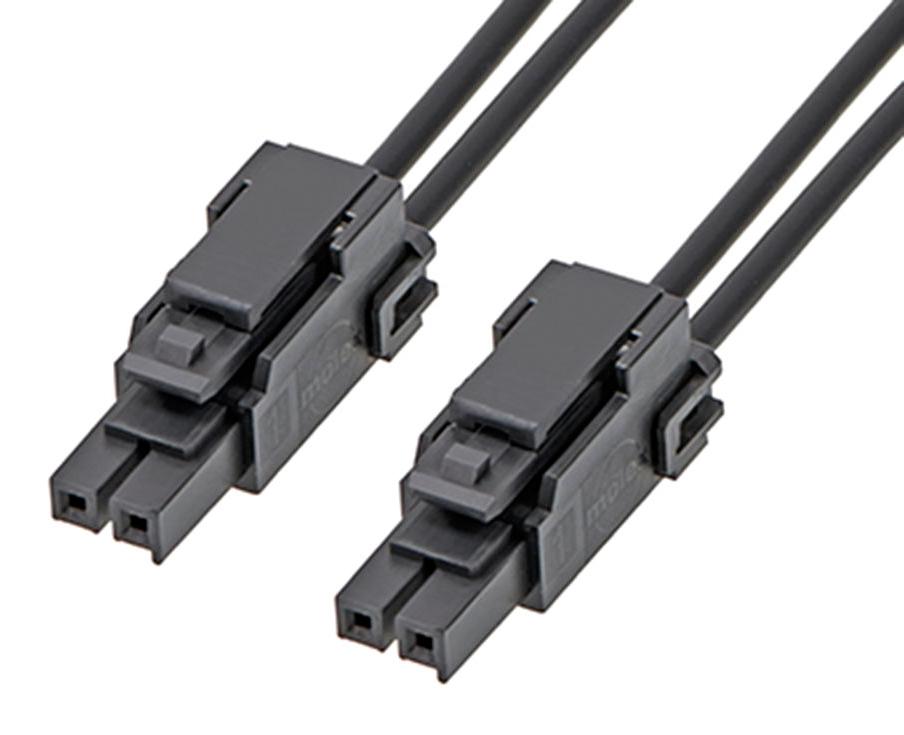

MOLEX 2174651021 Ultra-Fit Cable Assembly
The MOLEX 217465-1021 is an off-the-shelf cable assembly connecting Ultra-Fit connectors. It's designed for power and wire-to-board applications, offering a 3.50mm pitch and a 150mm length. Constructed with high conductivity copper and a nylon resin, this assembly provides reliable connectivity and is suitable for various industrial and commercial applications. It is RoHS compliant and features a black resin color.
Authorized Distributors
Source:Mouser Electronics
Part No:217465-1021
Stock:142
Inv Date:05-30-2026
Price: Unit price: $5.03
Buy/RFQ:
Source:RS Americas, Inc
Part No:217465-1021
Stock:0
Inv Date:05-29-2026
Price: Unit price: $3.07
Buy/RFQ:
Source:Master Electronics
Part No:217465-1021
Stock:50
Inv Date:05-29-2026
Price: Unit price: $2.948
Buy/RFQ:
Source:Onlinecomponents.com
Part No:217465-1021
Stock:50
Inv Date:05-29-2026
Price: Unit price: $2.948
Buy/RFQ:
MOLEX 2174651021 Ultra-Fit Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Ultra-Fit-to-Ultra-Fit
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: High Conductivity Copper
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 7.348
- number_of_rows: 1
- pitch_mating_interface: 3.50mm
- plating_min_mating: 1.524µm
- plating_min_termination: 1.524µm
- wire_insulation_diameter_mm: 2.03-2.39
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact_a: 14.0
- voltage_max_ac_rms_dc: 600V
- upc: 195842060296
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
