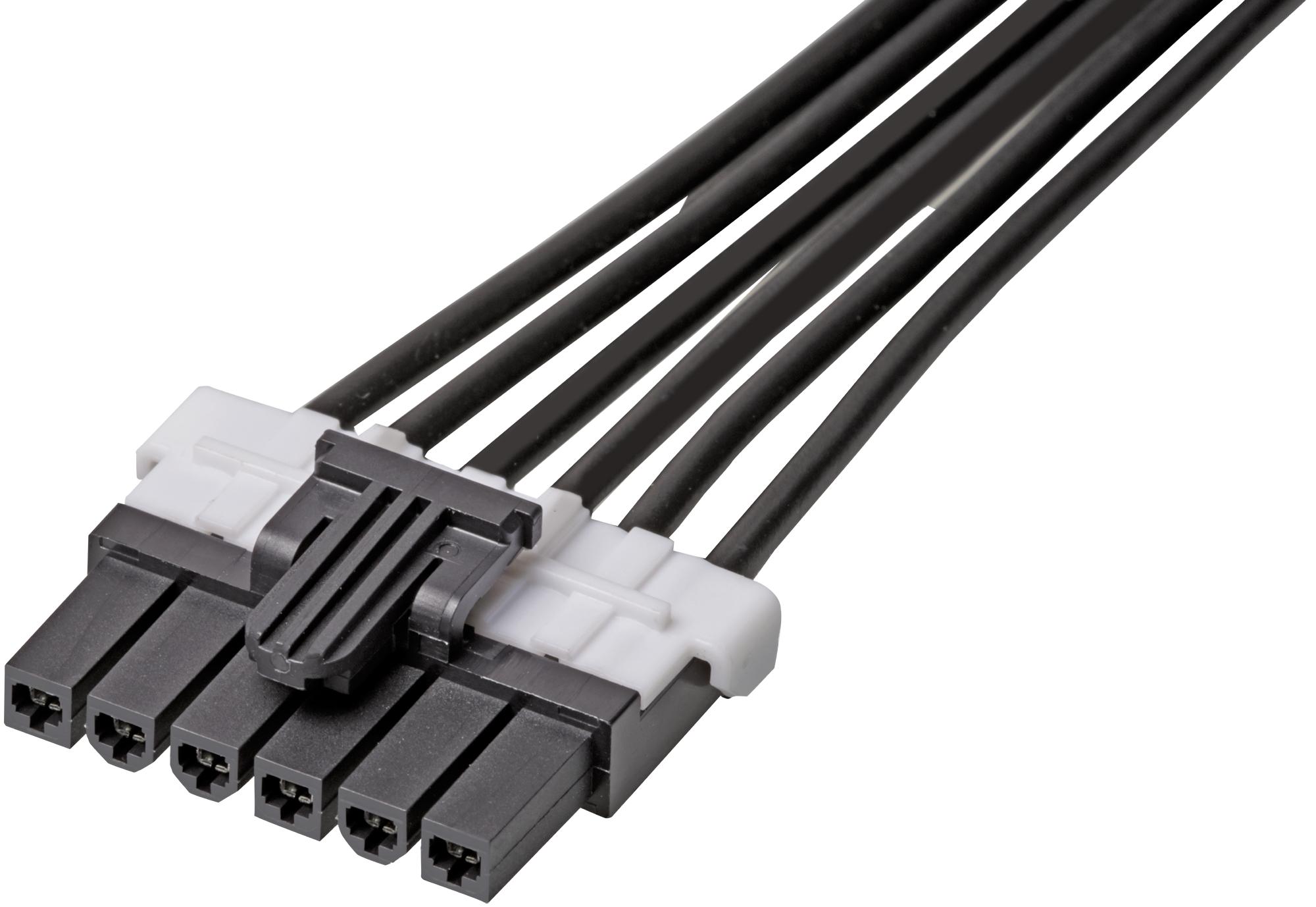

MOLEX 1451350601 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0601 is a Mini-Fit TPA2 to Mini-Fit TPA2 off-the-shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly features a 150mm length, 6 circuits, and a black resin overmold, ensuring durability and reliable connectivity. It is RoHS compliant and suitable for various industrial and commercial applications requiring secure and efficient power transmission. The assembly is designed to mate with Mini-Fit TPA2 plug housings and headers, providing a versatile solution for diverse connection needs.
MOLEX 1451350601 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 150.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 23.055/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- material_info: Not Contained Per - ED/61/2018 (27 June 2018)
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit TPA2 Plug Housing 200471, 200488; Mini-Fit Jr. Plug Housing 5559; Mini-Fit Jr. Headers 5566, 5569
- drawing_number: 4000095329-000
