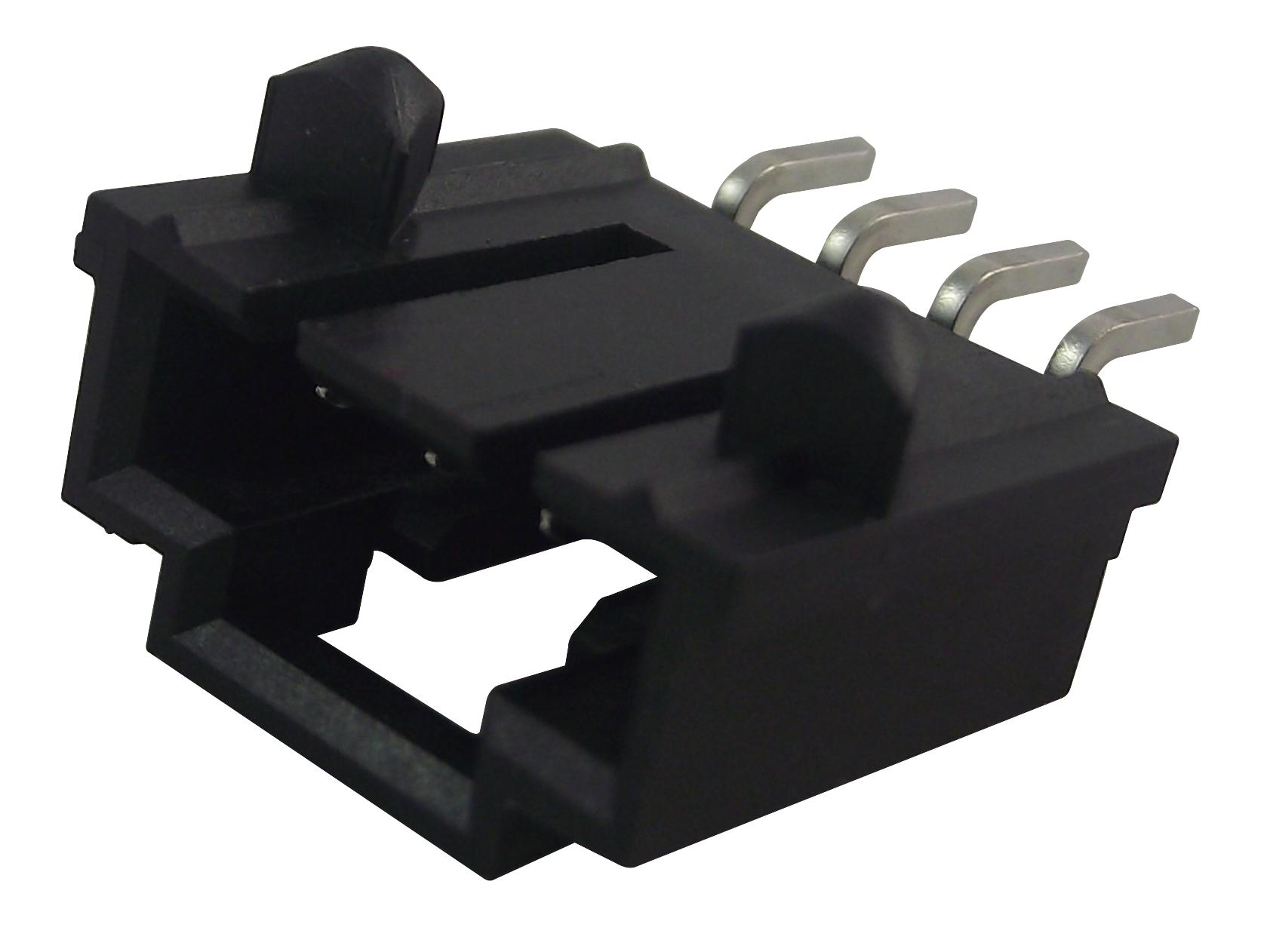

MOLEX 15913034 Wire-to-Board Connector
The 2.54mm pitch SL Wire-to-Board Header is a low-profile, surface-mount connector designed for easy mounting and reliable connection in compact electronic assemblies. It features a single row configuration with three circuits, a shrouded design, and a press-fit plastic peg for secure attachment. Made from high-temperature thermoplastic with tin-plated brass and phosphor bronze contacts, it supports up to 3A and 250V. Suitable for PCB mounting with a 1.60mm pitch interface, it ensures durability up to 25 mating cycles and complies with RoHS and UL standards, making it ideal for dense electronic systems and control modules.
MOLEX 15913034 Wire-to-Board Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 3
- Color: Black
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Maximum Current: 3A
- Maximum Voltage: 250V
- Operating Temperature Range: -40°C to +105°C
- Durability (mating cycles): 25
- Flammability: 94V-0
- Density: Fully shrouded, stackable, with PCB retention
- Orientation: Right angle
- Package Type: Tube
- PCB Thickness - Recommended: 1.60mm
- Process Capability: Lead-free, Reflow capable at 260°C for 20 seconds
- Approvals: UL, CSA compliant
Buy the Molex Series SL Wire-to-Board Connector: 15913034
Secure your electronic assemblies with the Molex Series SL Wire-to-Board Connector, featuring a 2.54mm pitch, three circuits, high-temperature thermoplastic body, and tin-plated contacts for excellent conductivity. This compact, surface-mount shrouded connector is designed for durability, supporting up to 25 mating cycles and rated for 3A at 250V. Ideal for dense control panels, automation equipment, and electronic modules, its right-angle, stackable design ensures reliable connection in confined spaces, making it a go-to choice for engineers seeking quality and ease of installation.
Order your Molex Series SL Wire-to-Board Connector with part number 15913034 today and ensure reliable, compact wiring solutions for your electronic projects.
