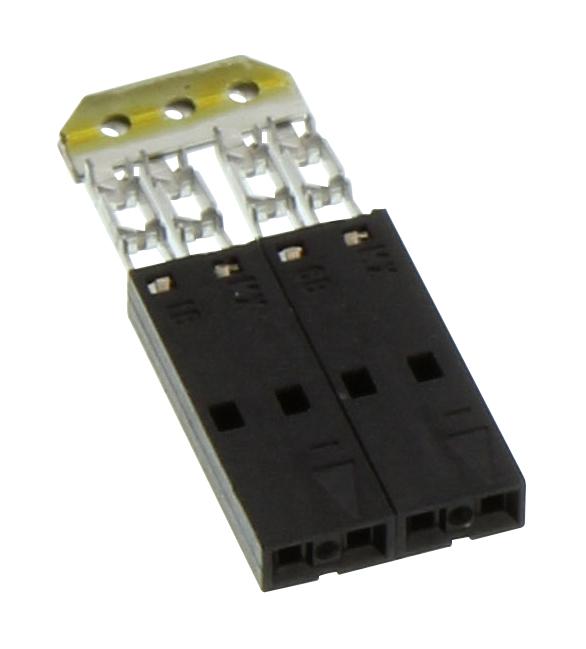

MOLEX 14562021 Insulation Displacement Connector
This product is a 2.54mm pitch insulation displacement connector (IDC) assembly designed for reliable electrical connections in electronic applications. It features a female, single-row design with a non-polarized configuration, suitable for 24 AWG wire sizes. Constructed with durable materials including phosphor bronze and a polyester alloy housing, it supports up to 50 mating cycles. The connector has a maximum operating temperature of -40°C to +105°C, with gold-plated contacts for optimal conductivity. Suitable for ribbon cable and discrete wire connections, it is UL and CSA certified, RoHS compliant, and halogen-free. It is ideal for use in compact electronic assemblies requiring high-performance, corrosion-resistant connectors.
MOLEX 14562021 Insulation Displacement Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Circuits: 2
- Color: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Temperature Range - Operating: -40°C to +105°C
- Wire Insulation Diameter: 1.35mm max
- Wire Size AWG: 24
- Electrical: 3.0A, 250V
- Durability (mating cycles max): 50
- UL Certification: Yes
- CSA Certification: Yes
- RoHS Compliance: Yes
- Halogen-Free: No
- Stackable: Yes
- Surface Mount Compatible (SMC): No
- Entry Angle: Vertical
- Lock to Mating Part: None
- PCB Retention: Not specified
- Packaging Type: Tube
Buy the Molex Series SL Insulation Displacement Connector: 0014562021
Purchase the Molex Series SL Insulation Displacement Connector 0014562021 online today for your electronic assembly needs. This 2.54mm pitch, female, single-row connector features gold-plated contacts, supporting 24 AWG wires with a maximum current of 3A and voltage of 250V. Its durable construction ensures up to 50 mating cycles, making it suitable for ribbon cable and discrete wire connections. Certified by UL and CSA, RoHS compliant, and halogen-free, this connector guarantees reliable, corrosion-resistant electrical connections for a wide range of industrial and consumer applications.
Order your Molex Series SL Insulation Displacement Connector 0014562021 today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MOLEX 14562021?
You can click on the BUY or RFQ button to purchase 14562021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 14562021?
You can download the 14562021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 14562021?
MOLEX
