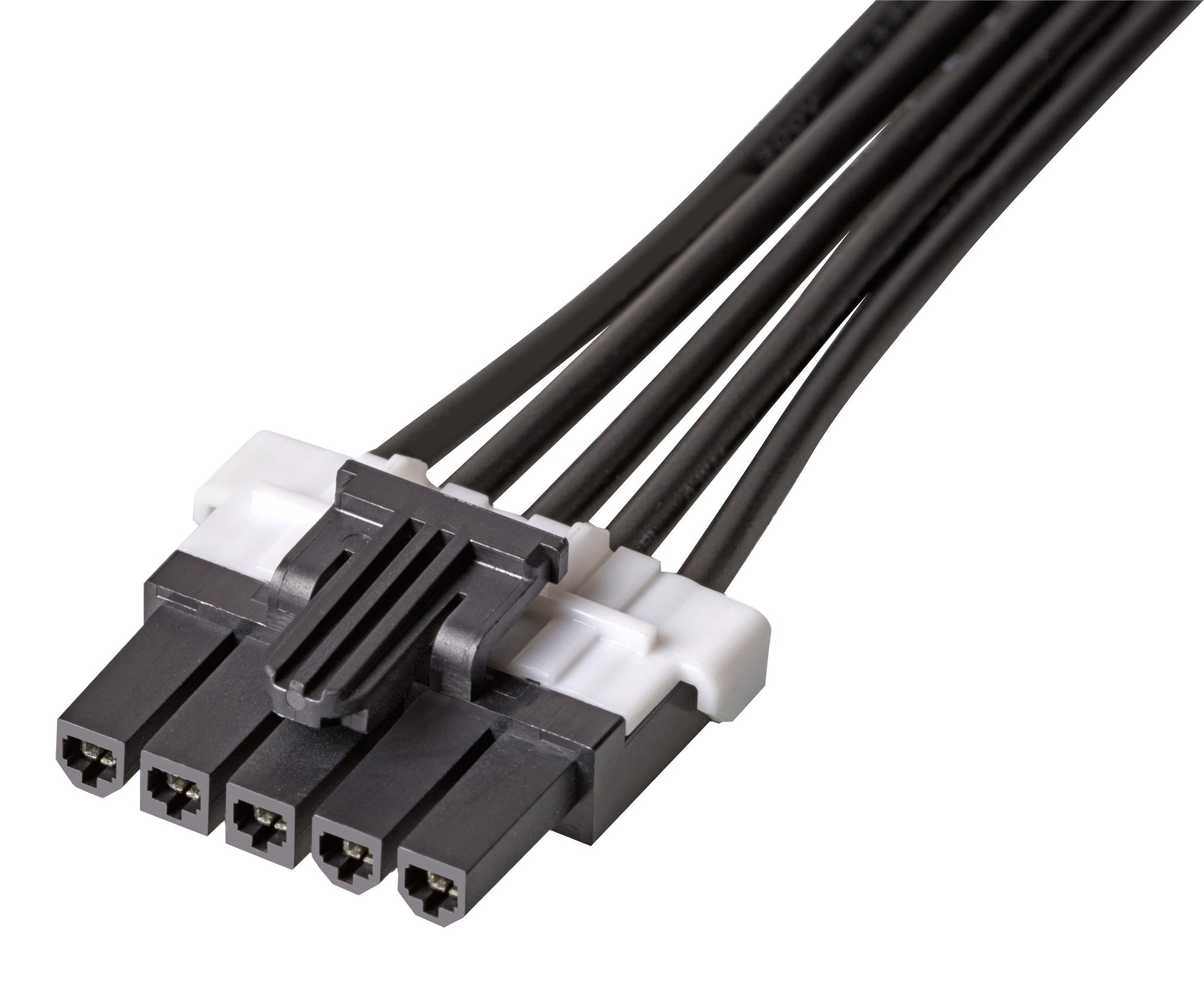

MOLEX 1451350500 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0500 is an off-the-shelf discrete cable assembly designed for power and wire-to-board applications. It utilizes Mini-Fit TPA2 connectors on both ends, offering a secure connection. The assembly features a black nylon resin overmold, phosphor bronze terminals with tin plating, and is RoHS compliant. It's ideal for applications requiring a compact and reliable power connection, such as industrial equipment, automotive systems, and consumer electronics.
MOLEX 1451350500 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2
- cable_length: 75.00mm
- circuits_loaded: 5
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 13.557/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact: 11.0A
- voltage_max: 600V AC/DC
- sales_drawing: 4000095328-000
