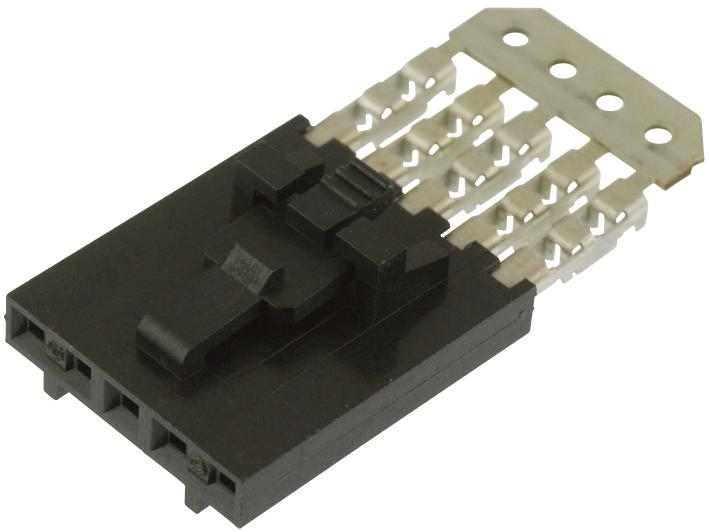

MOLEX 14562022 Insulation Displacement Connector
The 2.54mm pitch SL insulation displacement connector assembly is designed for reliable electrical connections in industrial and electronic applications. It features a female, single-row configuration with a positive lock for secure mating. Made from durable phosphor bronze with gold plating, it supports wire sizes up to 24 AWG and can withstand up to 3.0A and 250V. Suitable for automation, instrumentation, and control systems, this connector offers long-term performance with a temperature range of -40°C to +105°C. Its compact design ensures easy installation and high-density circuit integration, complying with RoHS, UL, and CSA standards for safety and sustainability.
MOLEX 14562022 Insulation Displacement Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Wire Size AWG: 24
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Lock to Mating Part: Yes
- Color - Resin: Black
- Durability (mating cycles max): Not specified
- Flammability: 94V-0
- Package Type: Tube
- Surface Mount Compatible: Yes
- RoHS Compliant: Yes
- Agency Certifications: UL, CSA
- Net Weight: 0.364 g
Buy the Molex 0014562022 – Reliable Insulation Displacement Connectors for Industrial Applications
Purchase the Molex insulation displacement connector online today and ensure secure, reliable electrical connections for your industrial projects. Designed with a 2.54mm pitch, it features a positive lock and supports 24 AWG wire. Made from durable phosphor bronze with gold plating for corrosion resistance, it withstands temperatures from -40°C to +105°C and handles up to 3A and 250V. Perfect for automation, control, and electronic systems, this UL and CSA-certified connector guarantees high performance and easy installation for demanding industrial environments.
Get Molex 0014562022 today—built for precision and long-lasting durability in electrical and control systems.
