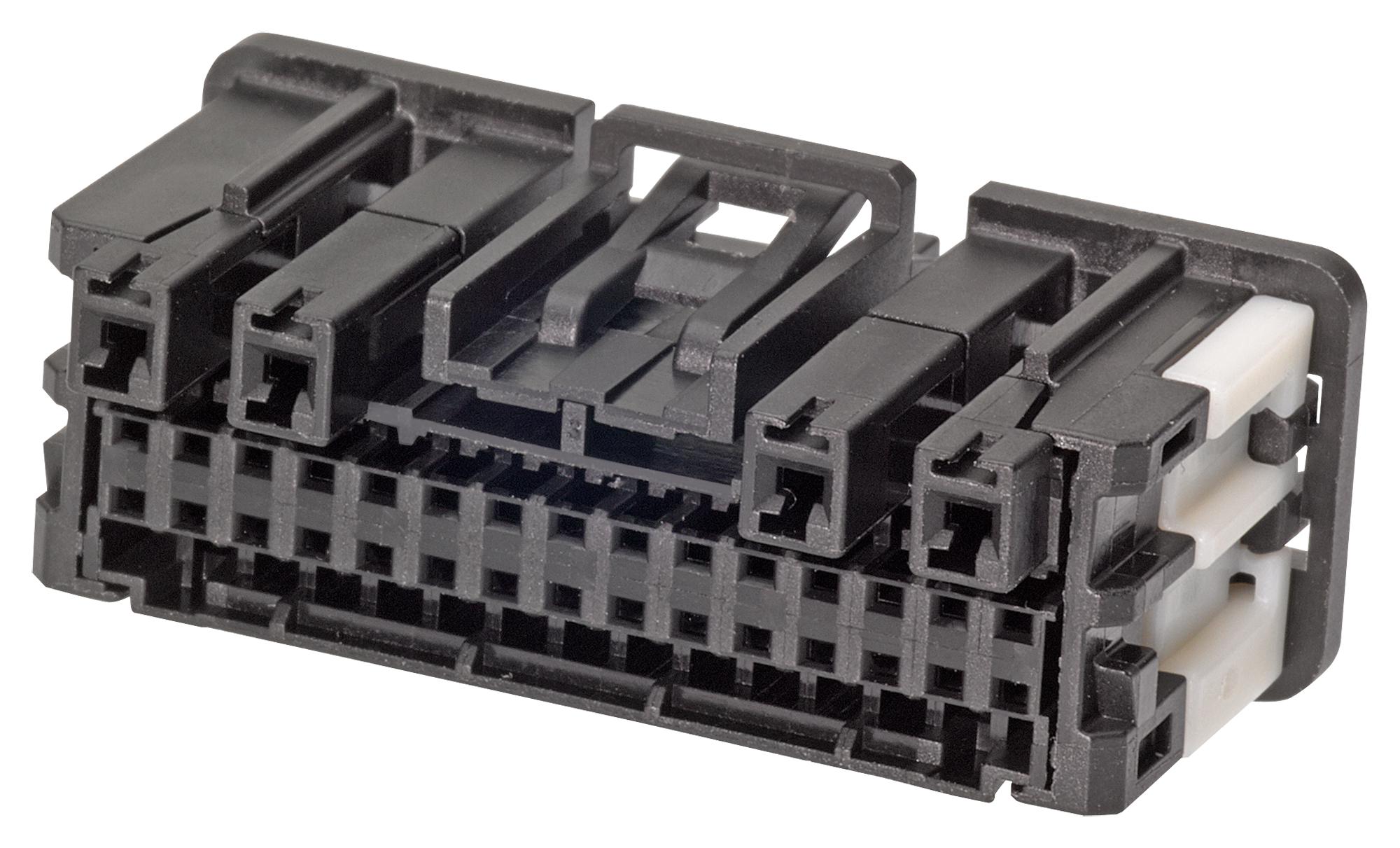

MOLEX 349590340 Mini50 Unsealed Receptacle
The MOLEX 34959-0340 Mini50 Unsealed Receptacle is a versatile connector solution for wire-to-board applications, particularly in power distribution systems. Designed with 34 circuits and polarization option A, it ensures proper mating alignment. The receptacle's black nylon resin construction provides durability and insulation, while its stackable design allows for increased circuit density. It is commonly used in automotive, industrial, and consumer electronics applications where a secure and reliable connection is essential. Refer to Molex's documentation for detailed specifications and application guidelines.
MOLEX 349590340 Mini50 Unsealed Receptacle Specifications:
- circuits_maximum: 34
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 5.524
- number_of_rows: 3
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 2.00
- pitch_termination_interface_mm: 2.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40 to +105
- application_specification: AS-34959-001-001
- packaging_specification: PK-31301-538-001
- product_specification: PS-34959-001-001
- sales_drawing: SD-34959-030-001
- test_summary: TS-34961-001
- mates_with: Mini50 Vertical Headers 34958, Mini50 Right-Angle Header 34961
- use_with: CTX50 Unsealed Terminals 560023
- elv_compliant: Compliant
- rohs_compliant: Compliant
- reach_svhc: Not Contained
