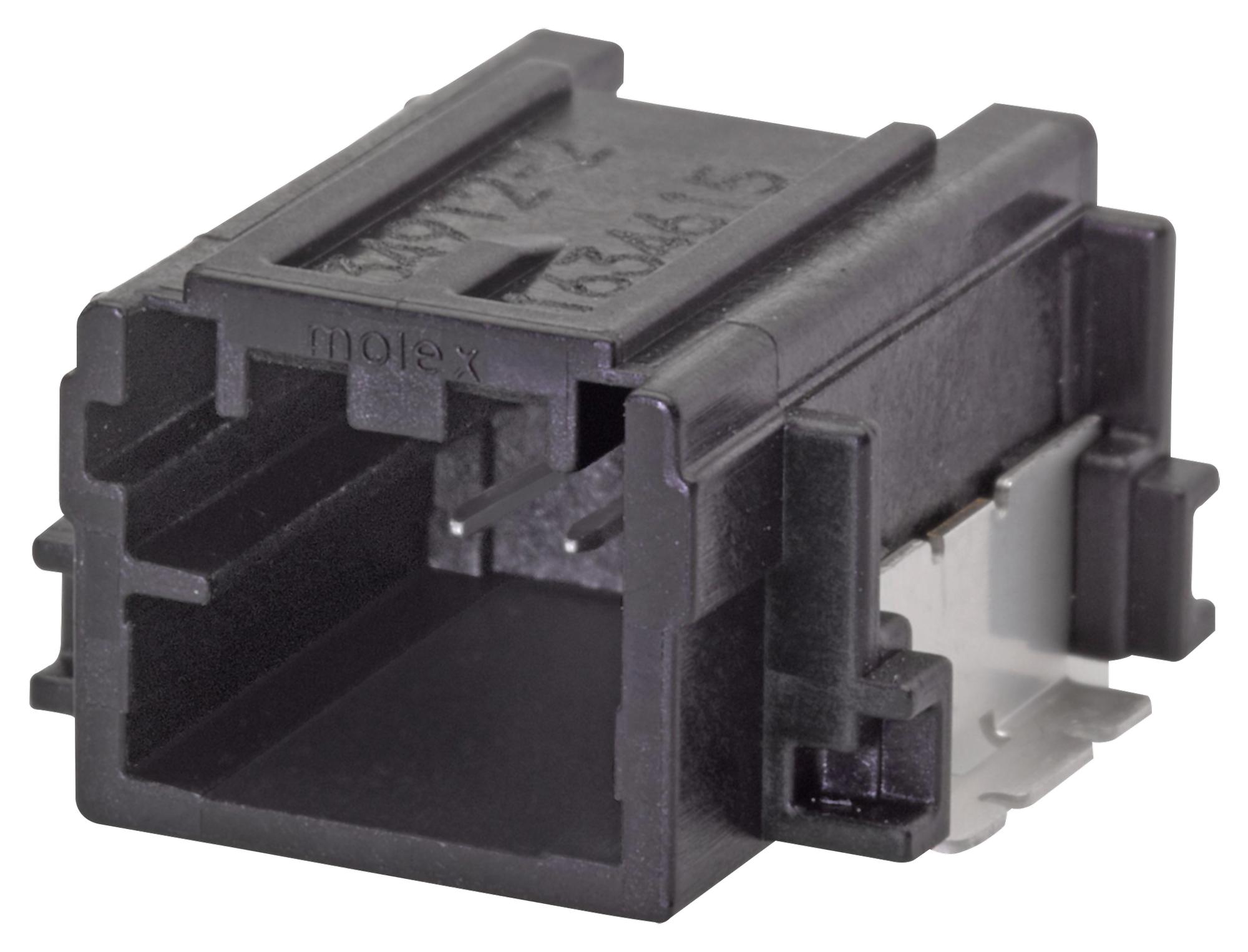

MOLEX 349128020 Automotive Connector System
The Mini50™ Unsealed Connector System by Molex offers a space-efficient solution with 50% size reduction over traditional USCAR 0.64mm connectors, fitting more signals into vehicle interiors. This industry-approved USCAR 050 interface supports 4 to 24 circuits, with features including a secondary lock for secure terminals, orientation and board retention features for easy PCB placement, and high-temperature thermoplastic housings. Suitable for automotive and commercial vehicle applications, it enhances design flexibility while reducing footprint, supporting wire gauges from 0.35mm² to 0.08mm², and enduring temperatures up to +260°C during wave soldering.
MOLEX 349128020 Automotive Connector System Specifications:
- Material: High Temperature Thermoplastic
- Contact Material: Copper Alloy with Tin Plating and Nickel Underplate
- Wire Range: 0.35mm² to 0.08mm² (22-28 AWG)
- Operating Temperature: -40°C to +105°C
- Voltage Max: 500V
- Current Max: 4.0A
- Contact Resistance: Max 20 milliohms
- Dielectric Voltage: 1500V AC
- Isolation Resistance: Min 100 Megohms
- Physical Dimensions: Header height varies; utilizes 4, 8, 12, 16, 20, 24, 34, 38 circuit sizes; housing sizes tailored for space savings, with a 51% frontal area reduction
- Impact Resistance: Meets USCAR-2 durability protocols, including vibration, thermal cycling, and chemical resistance
- Connector Retention Force: Minimum 60N for housing and 30N for terminals
Buy the Molex 349128020 – Reliable Automotive Connector for Industrial Applications
Enhance your vehicle wiring with the Molex Mini50 Unsealed Connector System, a space-efficient, USCAR-approved solution designed for automotive and industrial use. This connector supports 4 to 24 circuits, features a secure secondary lock, and is made from high-temperature thermoplastic for durability. Its compact footprint minimizes PCB space while ensuring reliable electrical connections with wire gauges from 0.35mm² to 0.08mm². Perfect for headliners, sensors, lighting, and HVAC applications, this system delivers quality and flexibility in demanding environments.
Order your Molex Series349128020 automotive connector today and ensure reliable, space-saving connections for your vehicle electronics projects.
Frequently Asked Questions
Where can I buy MOLEX 349128020?
You can click on the BUY or RFQ button to purchase 349128020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 349128020?
You can download the 349128020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 349128020?
MOLEX
