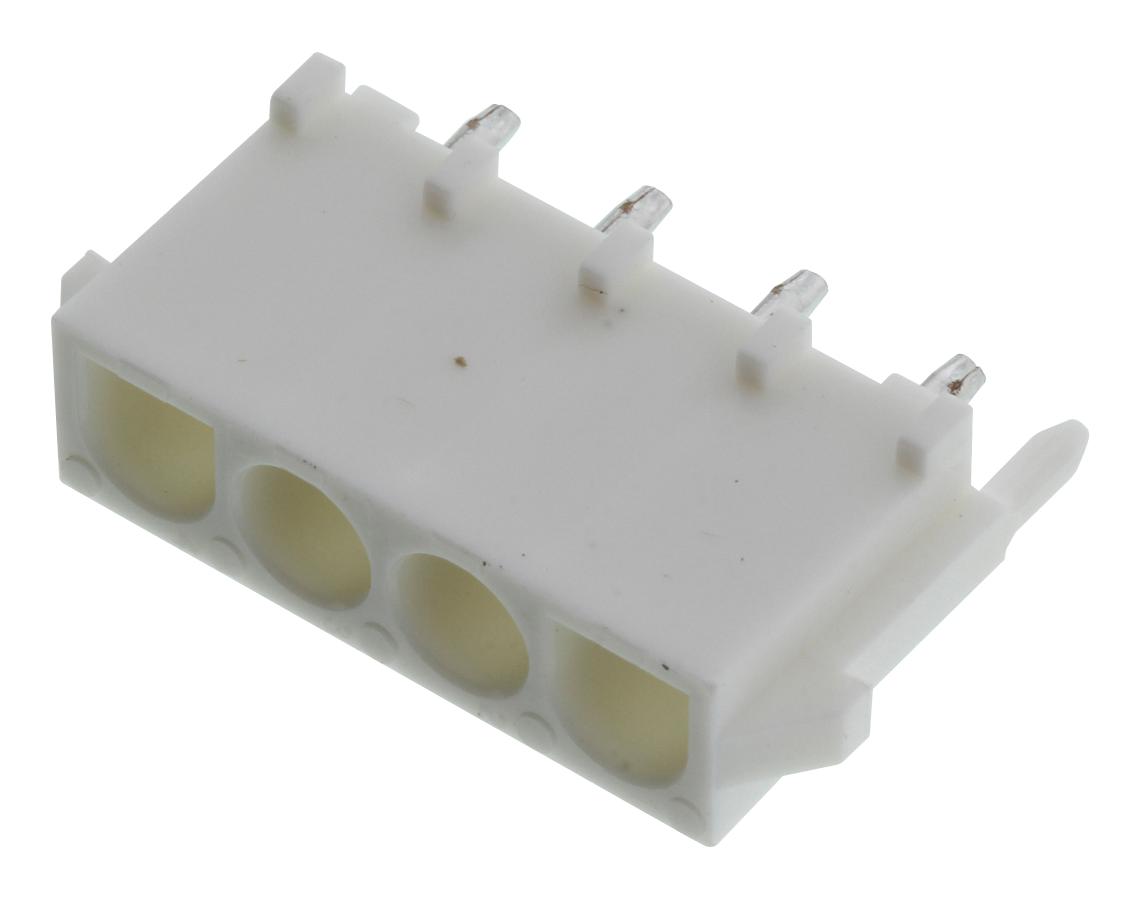

MOLEX 432550075 Power Connector Header
The MLX Power Connector Header features a 6.35mm pitch and 2.13mm contact diameter, designed for high vibration applications and board-to-board power connections. Made from polyester with UL 94V-0 flammability rating and tin plating for durability, it supports high current capacity of up to 12A per contact and voltage up to 600V. The vertical orientation, natural color, and 4 circuits provide reliable connections in industrial and power systems. Its compact design ensures secure mating and withstands temperatures from -55°C to +105°C, suitable for robust industrial use.
MOLEX 432550075 Power Connector Header Specifications:
- Pitch - Mating Interface: 6.35mm
- Pitch - Termination Interface: 6.35mm
- Contact Diameter: 2.13mm
- Number of Circuits (Loaded): 4
- Maximum Circuits: 4
- Material - Resin: Polyester 94V-0
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 12A
- Voltage - Maximum: 600V
- Operating Temperature Range: -55°C to +105°C
- Durability (Mating Cycles Max): Fully
- Orientation: Vertical
- Height (Mated): 430mm
- Net Weight: 2.841g
- Color - Resin: Natural
- Shrouded: Yes
- Stackable: Yes
- Surface Mount Compatible (SMC): No
- RoHS Compliant: Yes
Buy the Molex 0432550075 – Reliable Power Connector for Industrial Applications
Secure your industrial power connections with the Molex Power Connector Header featuring a 6.35mm pitch, 4 circuits, and tin plating for durability. Designed for high vibration and high current applications, it supports 12A per contact at up to 600V. Its vertical orientation ensures easy installation and reliable mating in various industrial environments. Made from UL 94V-0 rated polyester, it withstands temperatures from -55°C to +105°C. A durable, RoHS-compliant solution for robust power and board-to-board connections in demanding industrial systems.
Buy Molex 0432550075 now and experience unmatched reliability and performance in industrial power systems and high-vibration environments.
Frequently Asked Questions
Where can I buy MOLEX 432550075?
You can click on the BUY or RFQ button to purchase 432550075 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 432550075?
You can download the 432550075 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 432550075?
MOLEX
