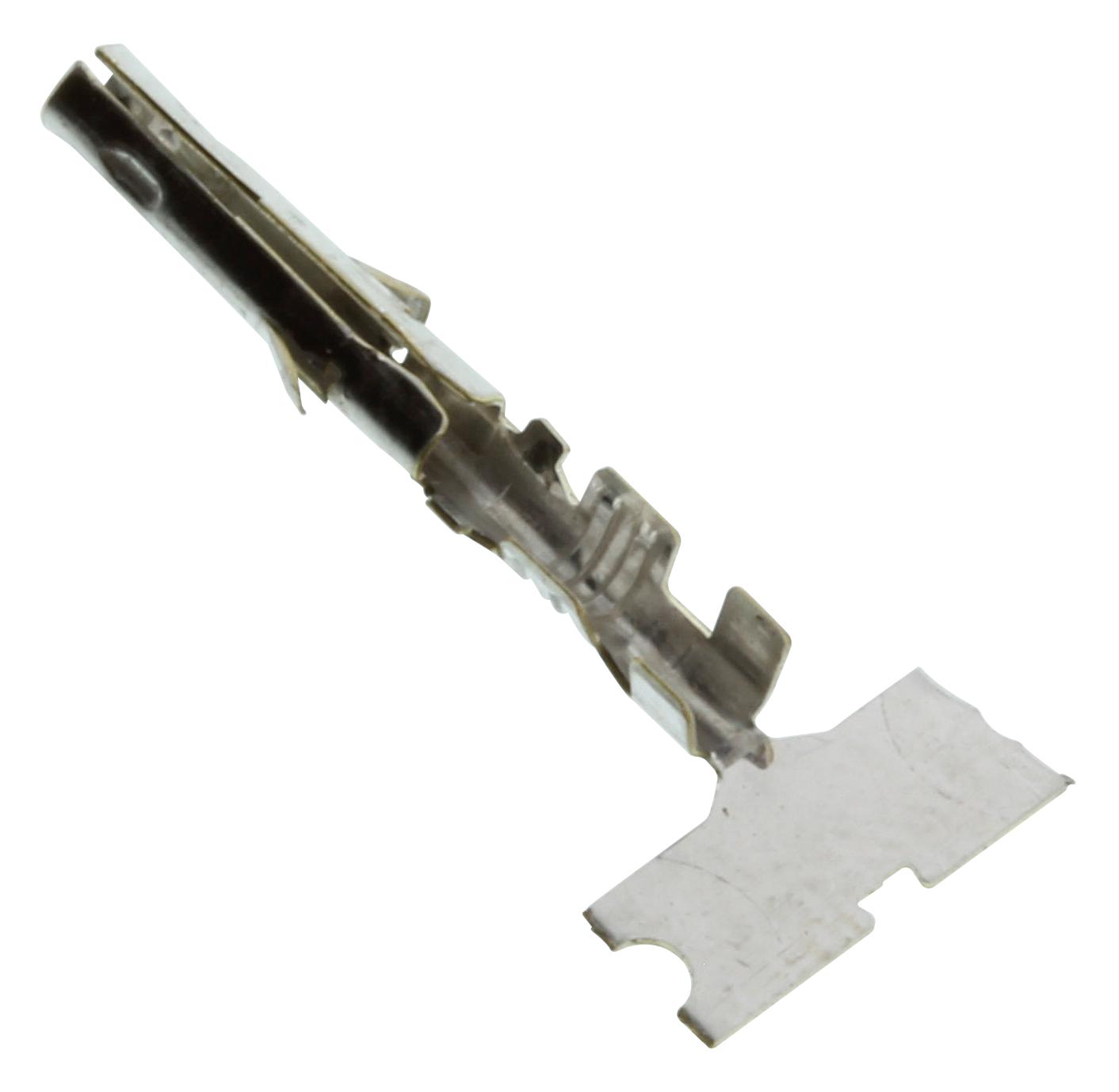

MOLEX 1501811020 Wire Terminal
The EconoLatch Female Terminal is designed for wire-to-wire connections using 20-22 AWG wires, featuring tin plating for corrosion resistance. It is suitable for applications requiring reliable electrical contact with maximum durability for multiple mating cycles. Manufactured from brass with tin plating on both mating and termination interfaces, this terminal is supplied on reels, facilitating automated and manual crimping processes. It supports up to 7.5A current and 400V maximum voltage, ensuring safe and efficient power transmission in various electronic and electrical systems. Compatible with EconoLatch receptacle housings, it is RoHS compliant and halogen-free, ideal for environmentally conscious manufacturing.
MOLEX 1501811020 Wire Terminal Specifications:
- Wire Size: 20-22 AWG
- Wire Diameter: 0.32-0.51 mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 0.135 g
- Packaging: Reel
- Plating Min - Mating: 0.508 um
- Plating Min - Termination: 0.508 um
- Durability: Up to 25 mating cycles
- Current - Maximum per Contact: 7.5A
- Voltage - Maximum: 400V
- Gender: Female
- Application: Power, Wire-to-Wire
- Crimp or Compression Type
- Crimp Height: Refer to application tooling specifications
Buy the Molex Series EconoLatch Female Terminal: 1501811020
Purchase Molex 1501811020 online for high-quality female wire terminals that guarantee secure connections for 20-22 AWG wires. Designed with tin-plated brass, these terminals ensure corrosion resistance and excellent electrical performance. Supplied on reels for efficient handling and processing, they support up to 7.5A current and 400V, making them suitable for various industrial and electronic applications. RoHS compliant and halogen-free, Molex's EconoLatch terminals provide superior durability and environmental safety, ideal for modern manufacturing and assembly needs.
Get Molex 1501811020 today—built for reliable power connections and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 1501811020?
You can click on the BUY or RFQ button to purchase 1501811020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1501811020?
You can download the 1501811020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1501811020?
MOLEX
