MOLEX 2147631115 Micro-Fit 3.0

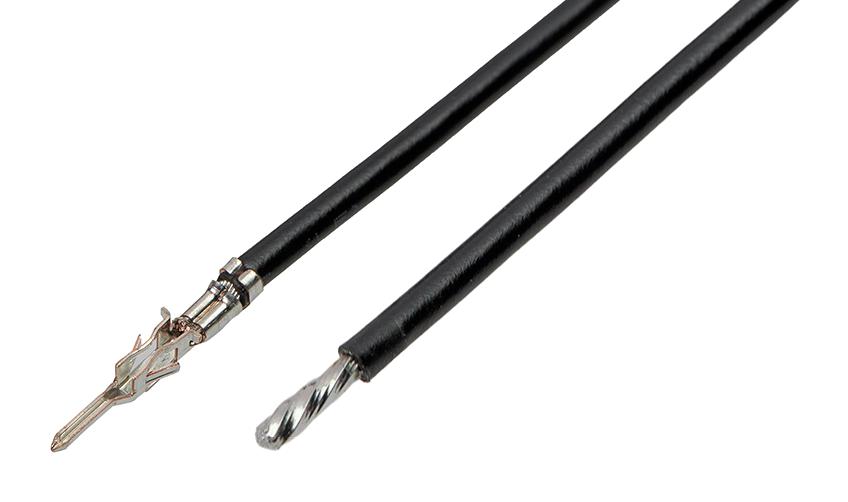

The MOLEX 2147631115 is a pre-crimped lead assembly specifically engineered for Micro-Fit 3.0 connector systems. This lead provides a convenient, ready-to-use connection solution for power and wire-to-wire applications. The tin plating on both mating and termination surfaces ensures reliable electrical contact, while the phosphor bronze material provides durability. It is designed for easy integration into various industrial and commercial applications requiring a secure and pre-terminated connection.
MOLEX 2147631115 Micro-Fit 3.0 Specifications:
- Part Number: 2147631115
- Status: Active
- Overview: Off-the-Shelf Pre-Crimped Leads
- Description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Pigtail, Tin (Sn) Plated, 450.00mm Length, 20 AWG, Black
- Product Family: Cable Assemblies
- Series: 214763
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- UPC: 193264575015
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 3.157/g
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Single Ended: Yes
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 20
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- Sales Drawing: 2147631111-000
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- Use With: Micro-Fit 3.0 Plug Housings 43020, 43640, Micro-Fit BMI Plug Housings 44300, 46625
