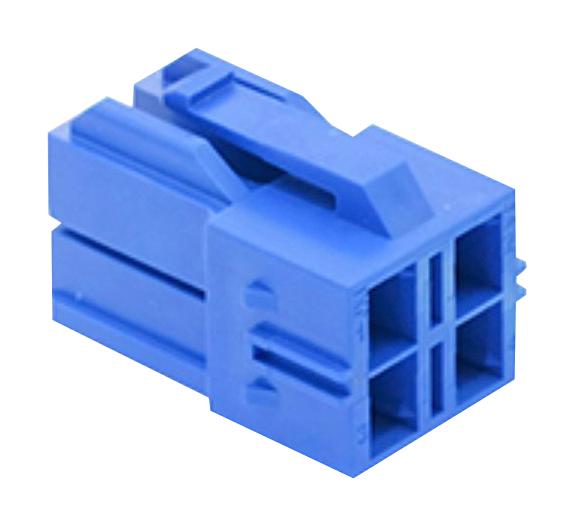

MOLEX 1510492401 CP-6.5 Receptacle Housing
The MOLEX 151049-2401 CP-6.5 Receptacle Housing is a crucial component in wire-to-board and wire-to-wire connector systems. Designed with a 6.50mm pitch and dual-row configuration, it provides a robust and reliable connection. The polarized design and positive lock mechanism ensure secure mating, while the blue resin construction offers durability and aesthetic appeal. This housing is ideal for applications requiring a compact and efficient connector solution, commonly found in automotive, industrial, and consumer electronics.
MOLEX 1510492401 CP-6.5 Receptacle Housing Specifications:
- pitch_mating_interface: 6.50mm
- pitch_termination_interface: 6.50mm
- circuits_maximum: 4
- color_resin: Blue
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: PBTP
- net_weight_g: 1.856
- number_of_rows: 2
- temperature_range_operating_c: -40° to +105°
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- series: 151049
- mates_with: CP-6.5 Headers 1510481401
- use_with_female_crimp_terminal_16_22_awg_wire: 505978000
- use_with_female_crimp_terminal_20_26_awg_wire: 505988000
- use_with_crimp_terminal_retainer: 511430205
- lead_free_process_capability: N/A
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
