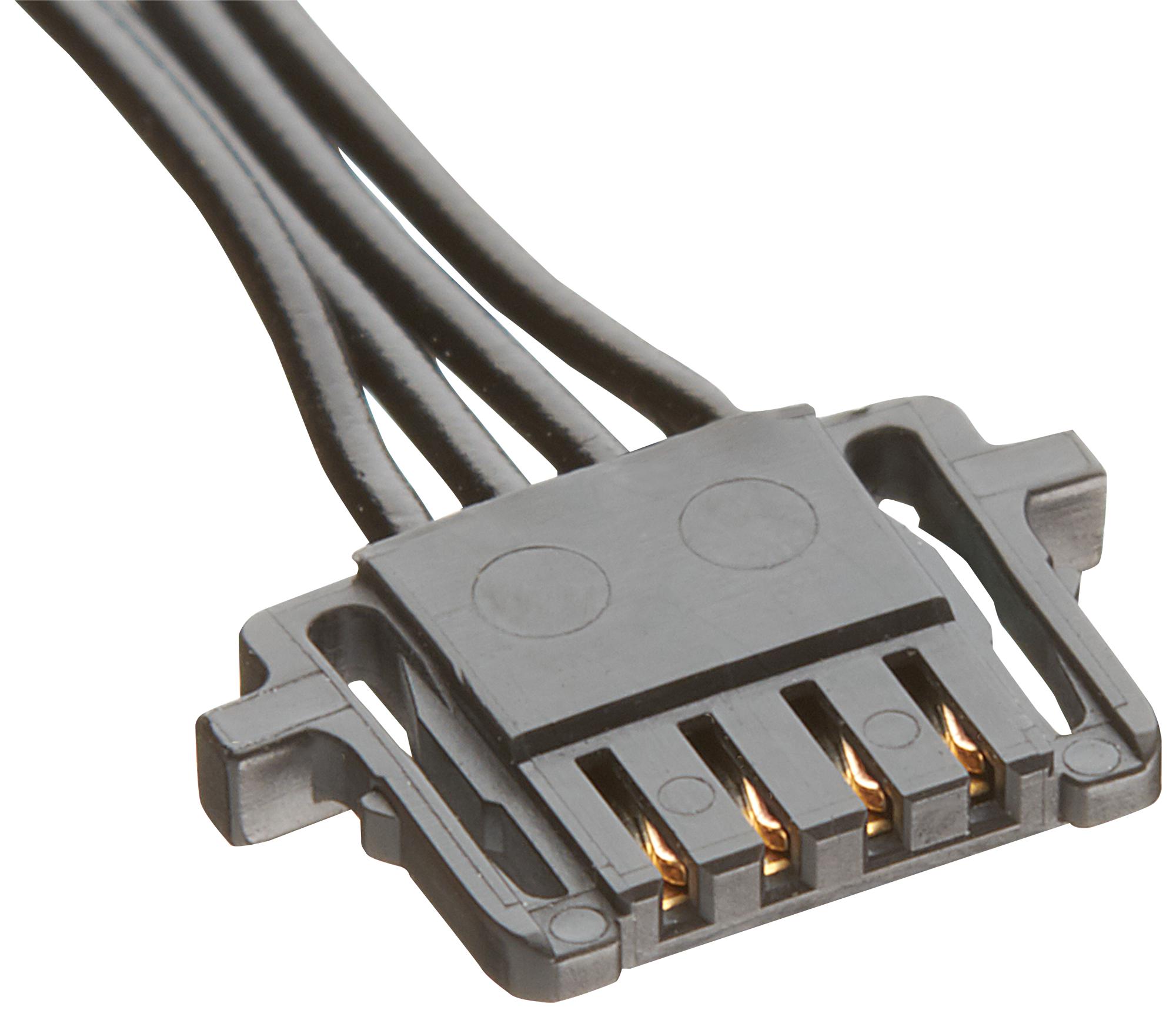

MOLEX 151310402 Cable Assembly
The Pico-Lock-to-Pico-Lock Off-the-Shelf Cable Assembly features a 1.00mm pitch, single row configuration, measuring 150mm in length with 4 circuits, designed for reliable connector-to-connector applications. Constructed with high-temperature thermoplastic resin, it is RoHS compliant and halogen-free, suitable for various electronic assembly projects. The connectors are female-to-female, with gold-plated copper alloy contacts, ensuring optimal electrical performance at a maximum voltage of 150V. This cable assembly is ideal for compact, durable, and secure interconnections in electronic systems.
MOLEX 151310402 Cable Assembly Specifications:
- Pitch: 1.00mm
- Length: 150.00mm
- Circuits: 4
- Color: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Maximum Voltage: 150V
- Wire Insulation Diameter: 0.60mm
- Wire Size: 28 AWG
- Termination Interface: Crimp or Compression
- Net Weight: 1.124g
- RoHS Compliance: Yes
- Halogen-Free: No
- Certifications: UL Listed (UL 1571)
Buy the Molex Series Pico-Lock Cable Assembly: 0151310402
Order the Molex Pico-Lock cable assembly 0151310402 online today for reliable, high-quality connections in your electronic projects. This 150mm long, 4-circuit assembly features gold-plated contacts, a 1.00mm pitch, and robust high-temperature thermoplastic construction. Designed for connector-to-connector applications, it offers RoHS compliance, ensuring eco-friendly manufacturing standards. Perfect for compact electronic systems requiring secure and durable interconnections, this assembly supports maximum voltage up to 150V and is compatible with Pico-Lock connectors, providing maximum performance and longevity for your engineering solutions.
Get Molex Pico-Lock cable assembly 0151310402 today—designed for secure, durable, and high-performance electronic connections.
