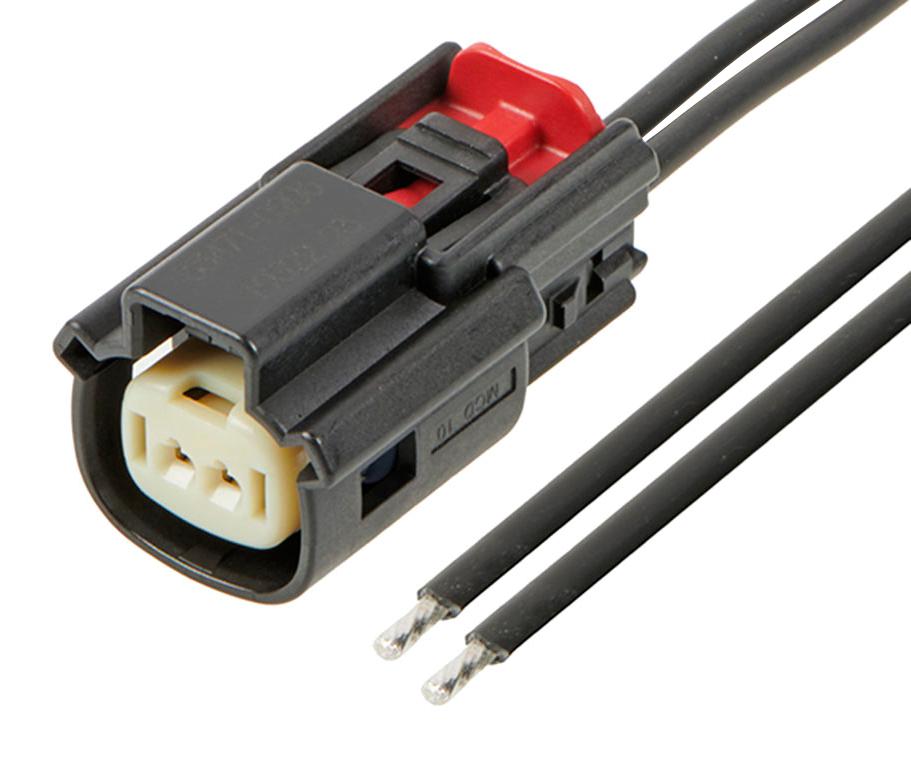

MOLEX 2162811022 MX150 Cable Assembly
The MOLEX 216281-1022 is a robust MX150 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly, ideal for power transmission and interconnect applications. It boasts a 300mm length, tin plating for reliable connections, and a black SPS/Nylon resin construction. This assembly is designed for wire-to-board and wire-to-wire configurations, offering a secure and efficient solution for various industrial and commercial applications. It is RoHS compliant and features a high-performance alloy material for durability.
MOLEX 2162811022 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 200.400/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714360
- material_info: High Performance Alloy (HPA)
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
