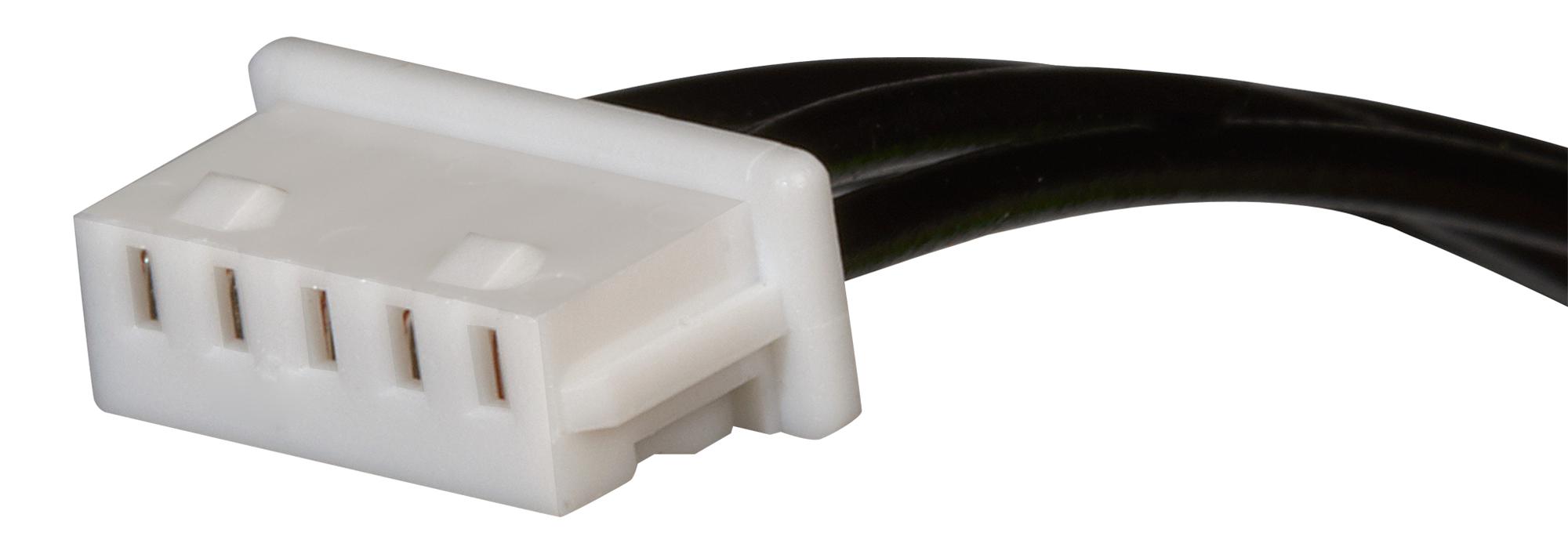

MOLEX 151340503 PicoBlade OTS Cable Assembly
The MOLEX 15134-0503 PicoBlade OTS Cable Assembly provides a pre-terminated solution for connecting PicoBlade connectors. This dual-ended cable assembly is 300mm in length and incorporates 5 circuits, offering a convenient and efficient way to establish connections in applications requiring compact and reliable interconnects. Constructed with phosphor bronze and tin plating, it ensures excellent conductivity and durability. The natural resin provides insulation and protection. It is RoHS compliant and suitable for a range of industrial and consumer electronics applications.
MOLEX 151340503 PicoBlade OTS Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Cable Length: 300.00mm
- Circuits (Loaded): 5
- Color - Resin: Natural
- Current - Maximum per Contact: 1.0A
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 2.900/g
- Pitch - Mating Interface: 1.25mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.914µm
- Wire Insulation Diameter: 0.90mm
- Wire Size AWG: 28
- Voltage - Maximum: 125V
- Mates With: 53261, 53047, 53398, 53048
