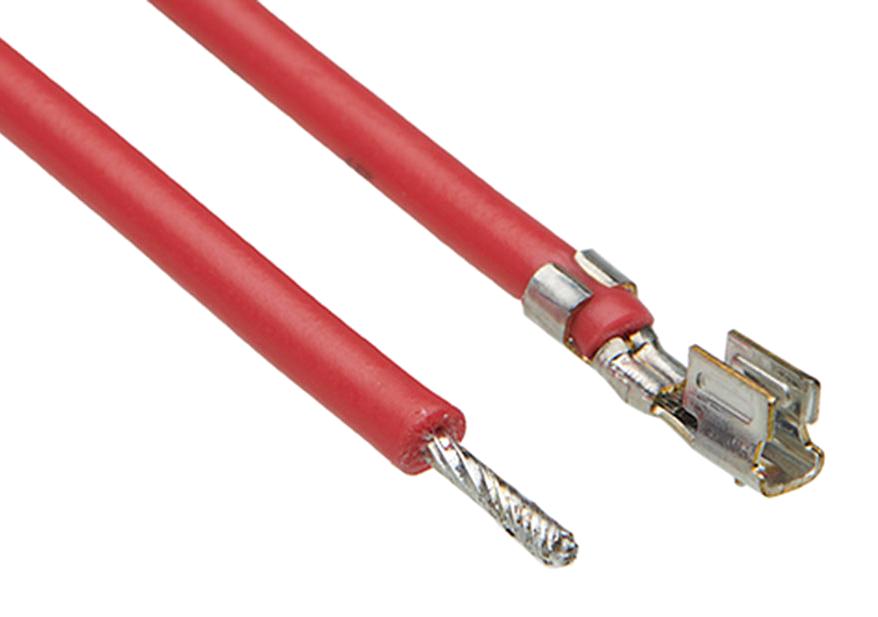

MOLEX 2175112124 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2124 is a pre-crimped lead assembly within the L1NK 250 series, offering a convenient and reliable connection solution. This assembly provides a female-to-pigtail termination, simplifying integration into various systems. With tin plating on both mating and termination points, it ensures excellent conductivity and corrosion resistance. The red PVC resin insulation provides durability and insulation. Ideal for applications requiring a pre-terminated connection, this lead assembly minimizes assembly time and ensures consistent performance.
MOLEX 2175112124 L1NK 250 Pre-Crimped Lead Specifications:
- Cable Length: 300.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PVC
- Net Weight: 1.706/g
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)/DC
- Wire Size AWG: 22
- Wire/Cable Type: UL 1569
- Connector to Connector: L1NK 250 Terminal-to-Pigtail
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.42mm-1.60mm
