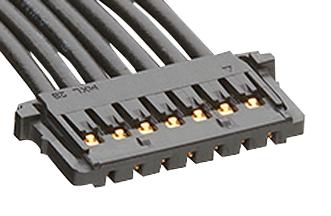

MOLEX 151320700 Pico-Lock Connector
The Pico-Lock connector system is a highly reliable and compact connector designed for quick and secure connections in electronic assemblies. This off-the-shelf cable assembly features a 1.50mm pitch, single row, 7 circuits, with a length of 50.00mm, and is available in black. Suitable for high-temperature thermoplastic applications, it offers excellent electrical performance with a maximum voltage of 150V. Compatible with Pico-Lock SMT wire-to-board headers, this connector is RoHS and REACH compliant, providing a safe and environmentally friendly solution for modern electronic device manufacturing.
MOLEX 151320700 Pico-Lock Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 7
- Cable Length: 50.00mm
- Color: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Wire Insulation Diameter: 1.10mm
- Wire Size: 24 AWG
- Voltage - Maximum: 150V
- Lock to Mating Part: Yes
- Connector Gender: Female-Female
- Assembly Configuration: Connector to Connector
- Reference Drawing Number: 151320700-000
Buy the Molex Series Pico-Lock Connector: 151320700
Experience reliable and secure electronic connections with the Molex Pico-Lock Connector featuring a 1.50mm pitch and 7 circuits. This high-quality, RoHS compliant cable assembly is 50mm long, constructed with durable copper alloy, and plated with gold and tin for optimal performance. Its compact design fits seamlessly into tight spaces, making it ideal for a wide range of electronic devices and assemblies. Purchase this versatile connector online today for a robust, environmentally friendly, and easy-to-install solution that ensures dependable connectivity in your projects.
Get Molex Pico-Lock 151320700 today—built for secure connections and high-temperature durability.
Frequently Asked Questions
Where can I buy MOLEX 151320700?
You can click on the BUY or RFQ button to purchase 151320700 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151320700?
You can download the 151320700 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151320700?
MOLEX
