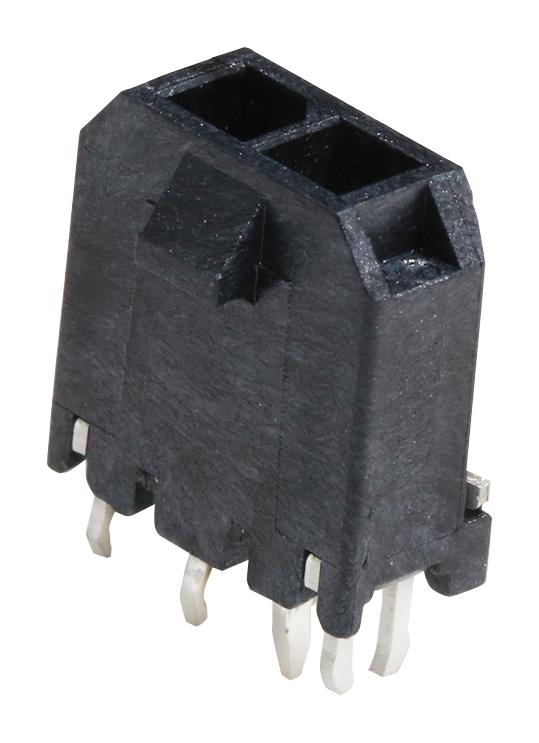

MOLEX 436500220 Micro-Fit 3.0 Connector
This high-temperature micro-fit 3.0 vertical header features a 3.00mm pitch, single row, 2 circuits with PCB press-fit, gold plating, and glow-wire capability. Constructed from flame-resistant thermoplastic, with brass metal material and tin plating, it supports a maximum current of 8.5A and voltage of 600V. Suitable for power and wire-to-board applications, it withstands -40°C to +105°C operating temperatures, and is designed for durability up to 30 mating cycles. Compact, shrouded, stackable, and surface-mount compatible, it ensures reliable electrical connections in demanding environments.
MOLEX 436500220 Micro-Fit 3.0 Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Circuits (loaded): 2
- Circuits (maximum): 2
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High-temperature thermoplastic
- Net Weight: 0.553g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- Recommended PCB Thickness: 1.60mm
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style - Through Hole, Kinked Pin
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Solder Process Data: Max process temperature 260°C, duration 030 seconds, lead-free process capability, max cycles 030
- Package Type: Tray
- Surface Mount Compatible (SMC): Yes
Buy the Buy Molex Micro-Fit 3.0 Part Number 436500220 Online
Purchase the Molex Micro-Fit 3.0 connector online today for your power and wire-to-board needs. Featuring a 3mm pitch, gold-plated contacts, and flame-resistant thermoplastic body, this component offers high durability with up to 30 mating cycles. Its compact design supports vertical orientation and is compatible with surface-mount technology. Rated for -40 to +105°C and 8.5A current capacity, it ensures reliable electrical connections in demanding environments. Order now for quick delivery and quality assurance in your electrical projects.
Buy Molex 436500220 now and experience unmatched reliability and performance in high-temperature power connections and wire-to-board applications.
Frequently Asked Questions
Where can I buy MOLEX 436500220?
You can click on the BUY or RFQ button to purchase 436500220 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500220?
You can download the 436500220 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500220?
MOLEX
