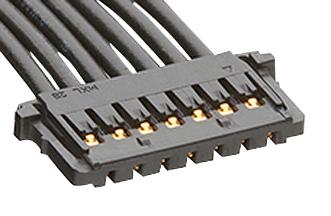

MOLEX 151320706 Pico-Lock Cable Assembly
The Pico-Lock cable assembly features a 1.50mm pitch, single row, 7 circuits, and black color, designed for reliable interconnection in electronic systems. It is a high-quality, off-the-shelf connector system with a length of 600mm, utilizing copper alloy metal components with gold and tin plating, ensuring durability and corrosion resistance. Its mating interface employs a crimp or compression termination style suitable for wires with a 1.10mm insulation diameter and 24 AWG wire size. This connector is UL 1061 rated for a maximum voltage of 150V, making it ideal for various industrial and electronic applications requiring secure and efficient power or signal transmission.
MOLEX 151320706 Pico-Lock Cable Assembly Specifications:
- Pitch - Mating Interface: 1.50mm
- Number of Circuits: 7
- Cable Length: 600.00mm
- Color: Black
- Connector Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Wire Insulation Diameter: 1.10mm
- Wire Size: 24 AWG
- Voltage - Maximum: 150V
- Net Weight: 14.007g
- Termination Interface: Crimp or Compression
- Reference Drawing Number: 151320700-000
- RoHS & China RoHS: Compliant
- Halogen-Free: No
Buy the Molex 151320706 – Reliable Pico-Lock Connector for Industrial Applications
Purchase the Molex Pico-Lock Cable Assembly with a 1.50mm pitch, 7 circuits, and 600mm length. Engineered for secure, durable connections in your electronic systems, featuring gold and tin plating for corrosion resistance. Its high-temperature thermoplastic resin ensures reliable performance in demanding environments. UL rated for safety with a maximum voltage of 150V. Ideal for industrial automation, electronic equipment, and power applications, this connector offers easy crimp and compression terminations for efficient assembly and maintenance.
Get Molex 151320706 today—built for precision and long-lasting durability in electronic circuit connections.
Frequently Asked Questions
Where can I buy MOLEX 151320706?
You can click on the BUY or RFQ button to purchase 151320706 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151320706?
You can download the 151320706 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151320706?
MOLEX
