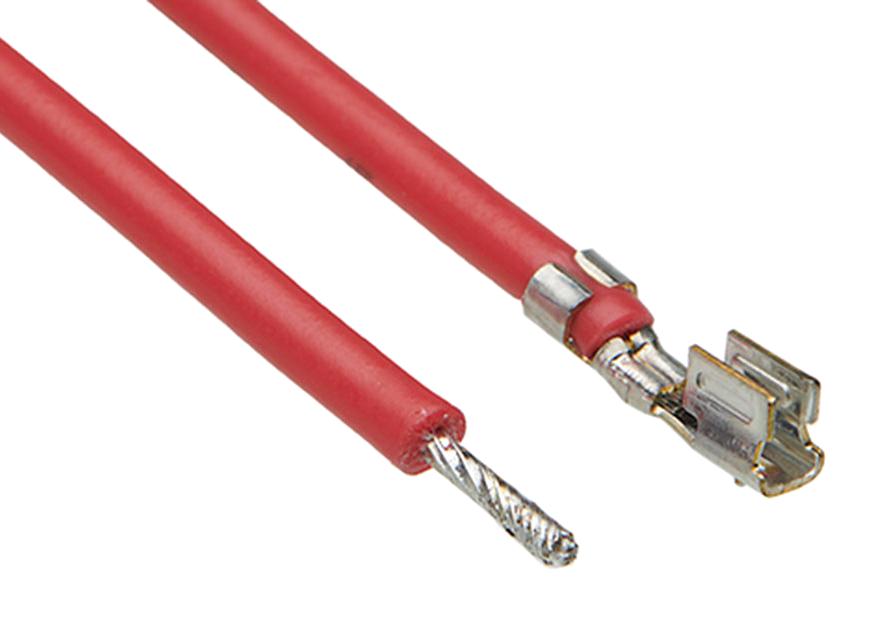

MOLEX 2175112125 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2125 is a pre-crimped lead assembly within the L1NK 250 series, offering a convenient and reliable connection solution. This assembly provides a female-to-pigtail configuration with a 450mm length and 22 AWG wire, ideal for applications requiring flexible and secure connections. The tin-plated copper alloy ensures excellent conductivity, while the red PVC resin insulation provides durability and insulation. It is designed for use with L1NK 250 receptacle housings and is RoHS compliant, making it suitable for a wide range of industrial and commercial applications.
MOLEX 2175112125 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 2.507/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119796
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2175112121-000
Buy the 217511-2125 MOLEX L1NK 250 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217511-2125 L1NK 250 Pre-Crimped Lead securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2175112125?
You can click on the BUY or RFQ button to purchase 2175112125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175112125?
You can download the 2175112125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175112125?
MOLEX
