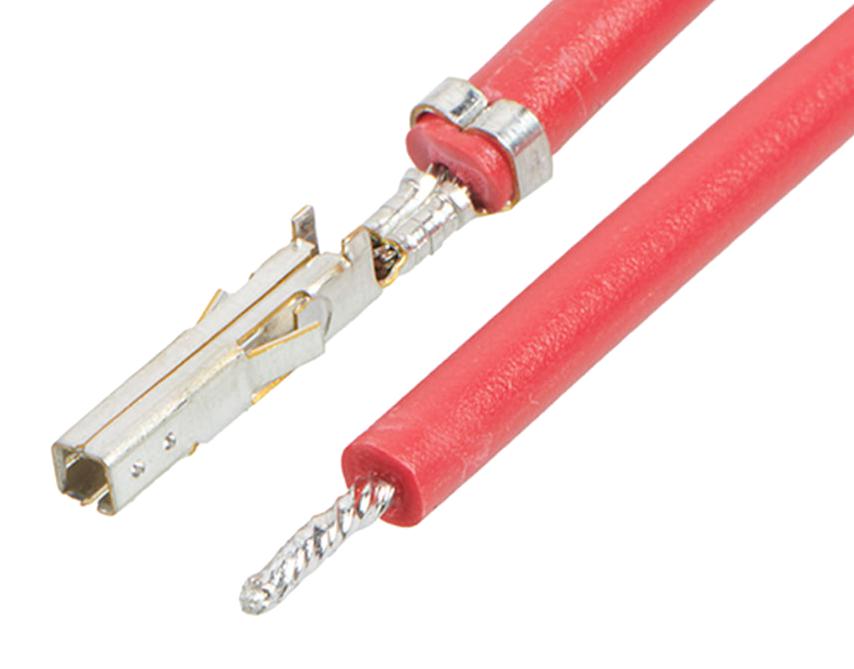

MOLEX 2153412114 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2114 is a pre-crimped lead cable assembly designed for various power and signal transmission applications. It combines a Mini-Fit Jr. female connector with a pigtail configuration, providing a ready-to-use solution for wire-to-board and wire-to-wire connections. The tin plating ensures excellent conductivity and corrosion resistance, while the red resin color facilitates easy identification. This assembly is ideal for applications requiring a secure and efficient connection without the need for on-site crimping.
MOLEX 2153412114 Mini-Fit Jr. Pigtail Cable Specifications:
- Product Family: Cable Assemblies
- Series: 215341
- Application: Power, Wire-to-Board, Wire-to-Wire Assembly
- Configuration: Pre-crimped Lead Only
- Connector to Connector: Mini-Fit Jr.-to-Pigtail
- Cable Length: 300.00mm
- Circuits (Loaded): 1
- Color: Red
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 5.116/g
- Packaging Type: Bag
- Ended: Yes
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 18
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- UPC: 193264559671
- Sales Drawing: 2153411111-000
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- China RoHS: Not Contained Per D(2020)4578-DC (25 June 2020)
- Halogen-Free: Yes
- Status: Not Low-Halogen
- Use With Mini-Fit Jr. Receptacle Housing: 5557
- Use With Mini-Fit BMI Slide and Lock Panel Mount: 44516
- Use With Mini-Fit BMI Panel Receptacle Housing: 42474, 43760
