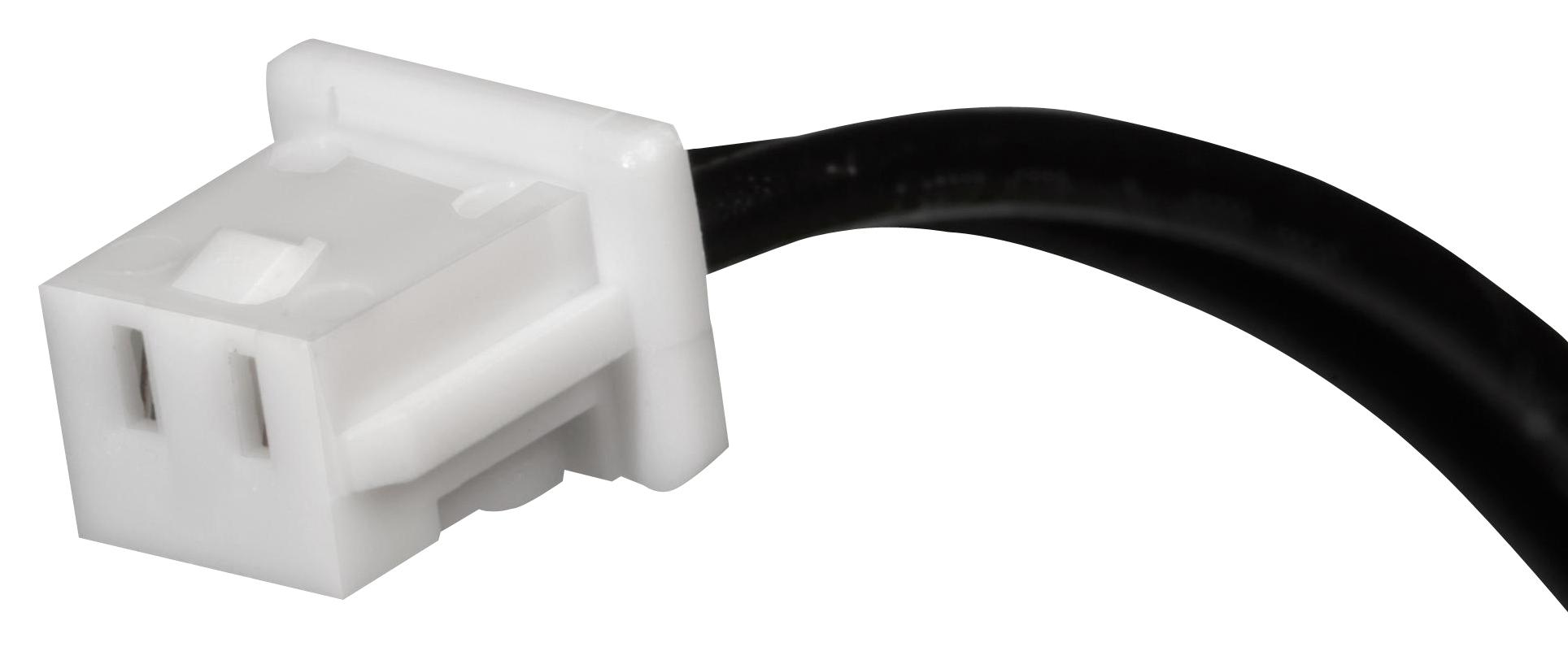

MOLEX 151340202 PicoBlade OTS Cable Assembly
The MOLEX 15134-0202 PicoBlade OTS cable assembly provides a robust and compact solution for connecting PicoBlade connectors. With a length of 150.00mm and 2 circuits, this assembly is ideal for applications requiring a secure and reliable connection. Constructed with phosphor bronze and tin plating, it ensures excellent conductivity and durability. The natural resin insulation provides insulation and protection, making it suitable for various industrial and commercial applications.
MOLEX 151340202 PicoBlade OTS Cable Assembly Specifications:
- overview: PicoBlade Connector System
- product_family: Cable Assemblies
- series: 15134
- assembly_configuration: Dual Ended
- connectors: Connector to Connector
- product_literature_order_no: 987651-6143
- upc: 889056870757
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 0.600/g
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- sales_drawing: 2012341354-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/30/2017
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048
